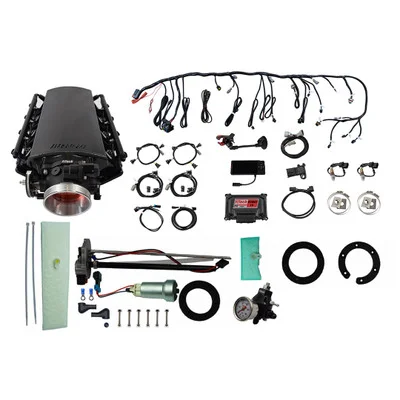

FiTech LS EFI 1000 HP w/LS3 Intake, TC, Pump & Regulator (76135)

Description

The FiTech LS EFI 1000 HP w/LS3 Intake, TC, Pump & Regulator (76135) offers a comprehensive solution for high-performance LS3 engine builds. Designed for short intake manifolds, this multi-port system delivers precise fuel delivery and control, supporting up to 1,000 horsepower on gasoline. It includes an in-tank 440 LPH fuel pump module, Go Fuel regulator master kit, and integrated transmission control for simplified installation and operation.

KEY FEATURES AND BENEFITS:

• Enhanced Engine Performance: Significant improvements to drivability and throttle response.
• Self-Learning ECM: Automatically adjusts fuel delivery for optimal performance across various driving conditions.
• User-Adjustable Settings: Allows for fine-tuning to specific engine configurations and power adders.
• Integrated Transmission Control: Simplifies management of electronic transmissions.
• Complete Fuel System: Includes a high-flow pump and regulator for consistent fuel delivery.
• High-Flow Injectors: 80 lbs/hr injectors support high-horsepower applications.

SPECIFICATIONS:

• Fuel Injection Style: Multi-port
• Fuel Injection System Type: Multi-port Throttle Body
• Maximum Horsepower (Gas): 1,000
• Fuel Pump Flow Rating: 440 LPH
• Injector Size: 80 lbs/hr
• Throttle Body Mounting Flange: GM LS2 4-bolt
• Transmission Controller: Yes
• Self-Tuning: Yes
• User Tunable: Yes
• Display Size: 4.5 inches
• Compatibility: LS3 short intake manifolds, GM LS2 4-bolt throttle body flange
• Metering Style: Speed density

HOW TO USE:

• Preparation: Disconnect the negative battery terminal. Remove the existing intake and fuel system components.
• Fuel System Installation: Install the in-tank 440 LPH fuel pump module and Go Fuel regulator master kit. Connect fuel lines according to the provided diagrams.
• Intake and Throttle Body Installation: Mount the FiTech throttle body onto the LS3 short intake manifold. Install the fuel rails and 80 lbs/hr injectors.
• Wiring Harness Connection: Connect the wiring harness to the ECM, sensors (oxygen, MAP, IAT, TPS), and injectors. Connect the transmission control wiring if applicable.
• Sensor Installation: Install the oxygen sensor in the exhaust system. Mount the MAP, IAT, and TPS sensors.
• ECM Mounting and Display Connection: Secure the ECM in a suitable location. Connect the 4.5-inch display.
• Initial Setup: Connect the battery. Turn the ignition key to the “on” position. Use the display to input basic engine parameters.
• Start and Self-Learning: Start the engine. Allow the ECM to self-learn and adjust fuel delivery. Monitor the display for any error codes.
• Fine Tuning: Use the display to fine-tune fuel and spark settings as desired.

BENEFITS OF USING THE FITECH LS EFI 1000 HP W/LS3 INTAKE, TC, PUMP & REGULATOR (76135):

• Improved Engine Performance: Increases horsepower and enhances throttle response.
• Enhanced Fuel Efficiency: Achieves better fuel economy through precise fuel delivery.
• Simplified Installation: Integrated fuel system and transmission control streamline setup.
• Precise Fuel Delivery: Optimizes power output for high-performance applications.
• User-Friendly Interface: Easy monitoring and adjustments via the display.
• Reliable High Horsepower Delivery: Designed to support demanding applications.

FEATURES:

• High-Flow 440 LPH In-Tank Fuel Pump: Ensures consistent fuel pressure for performance.
• Go Fuel Regulator Master Kit: Included for optimal fuel system performance.
• 80 lbs/hr Fuel Injectors: Adequate for high-performance applications.
• 4.5-Inch Display: For monitoring and tuning ease.
• Self-Learning ECM: Automatically adjusts for optimal performance.
• Complete Wiring Harness and Sensor Package: All necessary components included.
• Black Anodized Finish: Durable and aesthetically pleasing components.
