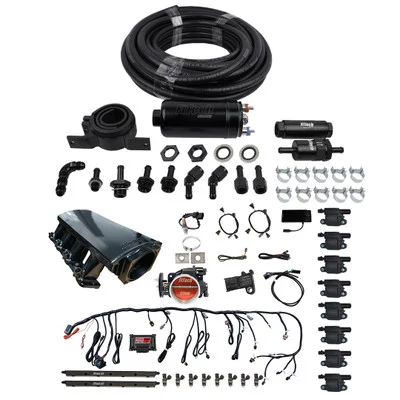

FiTech LS EFI 500HP w/70011 Kit Inline Fuel Pump & Coil Pack (78111)

Description

The FiTech LS EFI 500HP w/70011 Kit Inline Fuel Pump & Coil Pack (78111) is a comprehensive kit designed to modernize and enhance the performance of LS engines. This system replaces traditional carbureted setups with a sophisticated electronic fuel injection system, offering improved fuel efficiency and drivability. The kit provides all necessary components for a complete installation, including an intake manifold, injectors, ECU, and wiring harness.

KEY FEATURES AND BENEFITS:

• Complete EFI Solution: Converts LS engines to electronic fuel injection, replacing carbureted systems.
• Self-Learning ECU: Simplifies the tuning process for easier setup and operation.
• Performance Components: Includes a 92mm throttle body and 36 lbs/hr injectors to support engines up to 500 horsepower.
• Enhanced Performance: Expect improved throttle response, fuel economy, and overall engine performance.

SPECIFICATIONS:

• Maximum horsepower: 500 HP
• Injection style: Multi-port
• Timing control: Yes
• Power adder compatibility: Yes (Boost/Nitrous oxide)
• ECU: Included
• Fuel pump: Included
• Metering style: Speed density (MAP-N)
• Intake material: Aluminum
• Throttle body size: 92mm (1250 cfm)
• Injector size: 36 lbs/hr
• Fuel compatibility: Gasoline, Alcohol, Methanol, Flex Fuel
• Display: 4.5 inch touchscreen

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carburetor and intake manifold.
• Intake Installation: Install the FiTech LS3 intake manifold and fuel rails.
• Injector and Throttle Body Installation: Mount the 36 lbs/hr injectors and 92mm throttle body.
• Wiring Harness Connection: Connect the plug-and-play wiring harness to the engine sensors and ECU.
• Fuel Pump Installation: Install the external inline fuel pump and connect fuel lines.
• Sensor Installation: Install the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor.
• ECU Mounting: Mount the ECU and connect the touchscreen display.
• Coil Pack Installation: Install the LED coil packs.
• Initial Setup: Power on the system and use the touchscreen display to input engine parameters.
• Self-Learning Process: Allow the ECU to self-learn and fine-tune the fuel and timing settings.
• Verification: Check for leaks and ensure proper engine operation.

BENEFITS OF USING THE FITECH LS EFI 500HP W/70011 KIT INLINE FUEL PUMP & COIL PACK (78111):

• Improved fuel efficiency compared to carbureted systems.
• Enhanced throttle response and overall engine performance.
• Simplified tuning with the self-learning ECU.
• Complete kit provides all necessary components for installation.
• Compatibility with various fuel types.
• Modernizes older LS engines with electronic fuel injection technology.

FEATURES:

• Durable Construction: Black anodized aluminum for longevity and style.
• Throttle Body: High-flow, cable-operated design for better performance.
• Oxygen Sensor: Bosch wideband-controlled for precise air/fuel ratio monitoring.
• Sensor Bung: Stainless oxygen sensor bung included.
• Coil Compatibility: Works with both car and truck coils.
• Fuel System Design: AN fittings and fuel crossover for reliable connections.
• Custom Camshaft Compatibility: Suitable for use with custom camshafts.
• Vacuum Requirements: Designed for applications with at least 6 inches of vacuum at idle.
• Signal Compatibility: 24X and 58X crank and cam compatible.
• Controller Features: Programmable touchscreen handheld controller with data logging capabilities.
