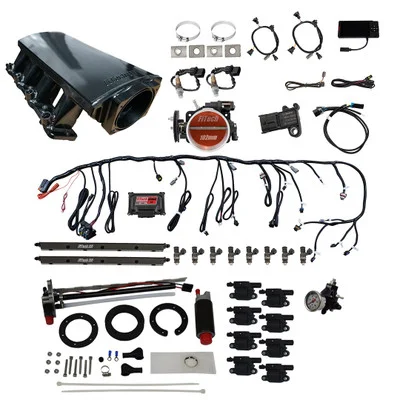

FiTech LS Kit 70013 w/50015 Module, Regulator & Coil Pack (79613)

Description

The FiTech LS Kit 70013 w/50015 Module, Regulator & Coil Pack (79613) provides a comprehensive upgrade for LS engines, offering modern electronic fuel injection for improved performance and efficiency. This kit delivers up to 750 horsepower capability, featuring a 102mm throttle body, high-volume fuel rails, and a self-learning ECU. The included in-tank fuel pump module simplifies installation, making it ideal for performance enthusiasts.

KEY FEATURES AND BENEFITS:

• High Power Support: Designed for LS engines, supporting up to 750 HP for enhanced performance.
• Multi-Port Fuel Injection: Ensures precise fuel delivery to each cylinder for optimal combustion.
• High Airflow Throttle Body: 102mm throttle body provides increased airflow for improved performance.
• Reliable Fuel Delivery: In-tank fuel pump module ensures consistent fuel flow and simplifies installation.
• Self-Tuning ECU: Allows for easy adjustments and monitoring through a user-friendly touch screen interface.
• Boost and Nitrous Compatibility: Enhances engine performance and drivability by supporting power adders.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Throttle Body: 102mm, 1500 CFM
• Injectors: 55 lbs./hr.
• Fuel Pump: 340 lph in-tank module
• ECU: Self-tuning, user-tunable
• Metering Style: Speed density (MAP-N)
• Intake Material: Aluminum, black anodized
• Compatibility: LS engines, 24X/58X crank/cam, boost/nitrous
• Display: 4.5 inch touch screen
• Fuel Type: Alcohol, gasoline, methanol, flex fuel

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing carbureted intake and fuel system.
• Fuel System Installation: Install the in-tank fuel pump module, ensuring proper fuel line routing.
• Intake and Throttle Body: Mount the FiTech intake manifold and 102mm throttle body onto the LS engine.
• Injector Installation: Install the 55 lbs./hr. fuel injectors and secure the fuel rails.
• Sensor Installation: Mount the O2, MAP, IAT, and TPS sensors for accurate readings.
• Wiring Harness Connection: Connect the plug-and-play wiring harness to the ECU and engine components.
• ECU Setup: Connect the touch screen display and configure the ECU settings according to your engine specs.
• Initial Start-Up: Start the engine and allow the self-learning ECU to adjust fuel and timing.
• Fine Tuning: Use the touch screen display to monitor and make fine adjustments as needed.

BENEFITS OF USING THE FITECH LS KIT 70013 W/50015 MODULE, REGULATOR & COIL PACK (79613):

• Improved fuel efficiency and performance compared to traditional carbureted systems.
• Simplified installation with the included in-tank fuel pump module for ease of use.
• Easy tuning and monitoring through the intuitive touch screen display.
• Enhanced engine control with sequential spark and fuel delivery for better performance.
• Compatibility with various fuel types and power adders for increased versatility.

FEATURES:

• Durable Construction: Black anodized aluminum intake manifold and throttle body for corrosion resistance.
• LED Coil Packs: Included for improved ignition reliability and performance.
• High-Volume Fuel Rails: Ensure consistent fuel pressure throughout operation.
• Accurate Monitoring: Bosch wideband-controlled oxygen sensor for precise fuel management.
• Programmable Outputs: Fan control outputs for enhanced cooling management.
• Data Logging Capabilities: Monitor performance and make adjustments through the touch screen controller.
• Transmission Control Compatibility: Optional support for GM transmission control.
• Secure Connections: AN fittings and fuel crossover for reliable fuel line connections.
• Custom Cam Compatibility: Designed to work with custom camshafts for tailored performance.
• Vacuum Requirements: Suitable for applications with at least 6 inches of vacuum at idle.
