Description

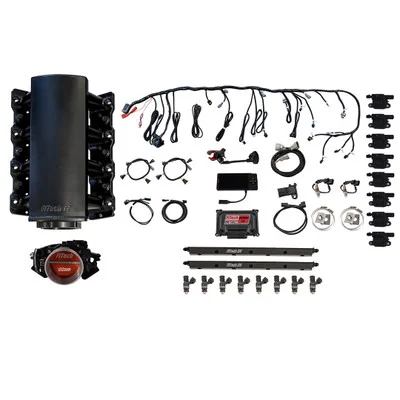

The FiTech LS Kit LS1/LS2/LS6 750HP w/Trans Control & LED Coil (79004) is engineered to enhance the performance of LS engines. This kit provides a comprehensive solution for those looking to improve fuel delivery and engine management. It includes essential components for a multi-port fuel injection setup, designed to support up to 750 horsepower. This system offers both self-learning and user-tunable options, allowing for precise engine calibration.
KEY FEATURES AND BENEFITS:
- High Performance: Designed for LS engines aiming for up to 750 horsepower.
- Advanced Fuel Delivery: Features a 102mm billet throttle body and high-volume billet fuel rails.
- Precise Fuel Metering: 55 lbs./hr. injectors for accurate fuel delivery.
- User-Friendly Interface: A 4.5-inch color touchscreen controller simplifies tuning and data logging.
- Boost Compatibility: Supports boost applications up to 30 psi.
- Transmission Control: Included for GM 4L60, 4L65, 4L70, and 4L80 transmissions.
- Versatile Fuel Options: Accommodates gasoline, alcohol, methanol, and flex fuel.
SPECIFICATIONS:
- Maximum Horsepower: 750 HP
- Injection Style: Multi-port
- Throttle Body: 102mm, GM LS2 4-bolt
- Injectors: 55 lbs./hr.
- Intake Manifold: Aluminum, LS1 short intake
- ECU: Included, self-learning and user-tunable
- Transmission Control: Included
- MAP Sensor: 3-bar, up to 30 psi boost
- Fuel Rails: Billet aluminum
- Display: 4.5-inch color touchscreen
- Fuel Compatibility: Gasoline, Alcohol, Methanol, Flex Fuel
HOW TO USE:
- Installation: Mount the intake manifold and throttle body onto the LS engine.
- Fuel System: Connect the fuel rails and injectors, ensuring proper fuel line connections.
- Wiring: Install the plug-and-play wiring harness, connecting all sensors and components.
- ECU Setup: Mount the ECU and connect the touchscreen controller.
- Sensor Connections: Attach the MAP sensor, IAT sensor, TPS sensor, and oxygen sensors.
- Initial Setup: Power on the system and use the touchscreen controller to input basic engine parameters.
- Self-Learning: Start the engine and allow the ECU to self-learn and adjust fuel and timing.
- Fine Tuning: Use the touchscreen to fine-tune fuel and timing settings as needed.
- Transmission Control: If applicable, configure the transmission control settings through the controller.
BENEFITS OF USING THE FITECH LS KIT LS1/LS2/LS6 750HP W/TRANS CONTROL & LED COIL (79004):
- Improved engine performance and fuel efficiency.
- Simplified tuning process with self-learning ECU.
- User-tunable options for precise adjustments.
- Boost compatibility expands application range.
- Included transmission control streamlines drivetrain management.
- Quality materials, such as billet aluminum, ensure reliability.
FEATURES:
- Accurate Monitoring: Dual Bosch wideband oxygen sensors for precise air-fuel ratio monitoring.
- Engine Protection: Knock sensor control to prevent detonation.
- Signal Compatibility: 24X and 58X crank and cam compatibility for various LS engine configurations.
- Complete Ignition System: LED coil pack set included.
- Corrosion Resistance: Black anodized aluminum components.
- Cable Operated: Throttle body design for optimal performance.
- Vacuum Requirement: Designed for applications making at least 6 inches of vacuum at idle.
- Robust Fuel System: AN fittings and fuel crossover included.
