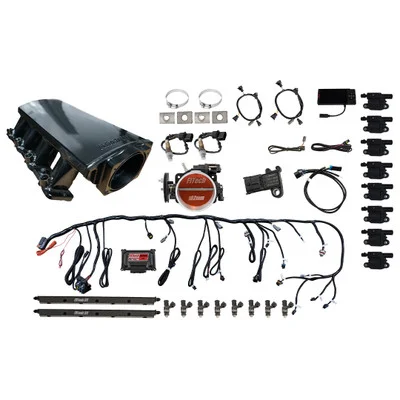

FiTech LS3/L92 Kit 750HP w/ LED Coil Pack Set (79013)

Description

The FiTech LS3/L92 Kit 750HP w/ LED Coil Pack Set (79013) provides a complete solution for upgrading LS-series engines to electronic fuel injection. Designed for those seeking enhanced performance and drivability, this kit includes everything needed for a significant engine upgrade, except the fuel supply system. It features a self-learning ECU, high-flow components, and visual enhancements like LED coil packs.

KEY FEATURES AND BENEFITS:

• High Power Output: Engineered to deliver up to 750 horsepower to LS engines with LS3-style cylinder heads.
• Multi-Port Fuel Injection: Ensures precise fuel delivery for optimal performance.
• Self-Tuning ECU: Automatically adjusts fuel and timing for enhanced drivability.
• High-Flow Components: 102mm throttle body and 55 lb/hr injectors provide sufficient airflow and fuel supply.
• Maximized Power Range: LS3 intake manifold optimizes power in the 1,500-6,500 rpm range.
• Modern Aesthetic: LED coil packs add a contemporary touch to your engine bay.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Timing Control: Yes
• ECU: Included, self-tuning
• Throttle Body: 102mm, cable-driven
• Injectors: 55 lb/hr
• Intake Manifold: LS3, aluminum
• Coil Packs: LED-lit
• O2 Sensors: Dual wideband
• Compatibility: LS3, L92, L76, L99, LSA, LS9 heads
• Fuel System: Not included
• Transmission Control: Not included
• Metering Style: Speed density

HOW TO USE:

• Preparation: Ensure the engine is compatible with LS3-style heads. Disconnect the existing fuel and ignition systems.
• Intake Installation: Install the LS3 intake manifold onto the cylinder heads.
• Throttle Body and Injectors: Mount the 102mm throttle body and install the 55 lb/hr injectors into the fuel rails.
• Wiring Harness: Connect the wiring harness to all sensors, injectors, and coil packs.
• ECU Mounting: Secure the ECU in a suitable location.
• Sensor Installation: Install the O2 sensors, MAP sensor, and IAT sensor.
• Coil Pack Installation: Mount the LED coil packs and connect them to the wiring harness.
• Fuel System Setup: Install an external fuel pump, lines, and regulator (not included).
• Controller Setup: Connect the touchscreen controller and follow the on-screen instructions for initial setup.
• Initial Startup: Start the engine and allow the self-tuning ECU to adjust fuel and timing.
• Fine Tuning: Use the touchscreen controller to make any necessary adjustments.

BENEFITS OF USING THE FITECH LS3/L92 KIT 750HP W/ LED COIL PACK SET (79013):

• Improved engine performance and horsepower.
• Enhanced throttle response and drivability.
• Precise fuel control for optimal efficiency.
• Self-tuning capabilities for easy setup and adjustments.
• Modernized engine appearance with LED coil packs.
• Compatibility with various fuel types.
• Easy-to-use touchscreen controller.

FEATURES:

• Accurate Monitoring: Dual Bosch wideband O2 sensors for precise air/fuel ratio monitoring.
• Boost Applications: 3-bar MAP sensor to handle boosted applications.
• Durable Components: Black anodized aluminum construction for corrosion resistance.
• Knock Sensor Control: Integrated to protect engine performance.
• Robust Design: Stainless steel oxygen sensor bungs for durability.
• Signal Compatibility: Works with 24X and 58X crank and cam signals.
• Data Logging: Programmable touchscreen hand-held controller included.
• Flexible Setup: AN fittings and fuel crossover provided.
• Vacuum Requirement: Designed for engines producing at least 6 inches of vacuum at idle.
