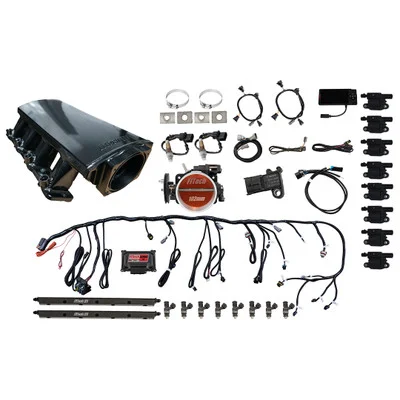

FiTech LS3/L92 Kit 750HP w/ Trans Control & LED Coil Pack Set (79014)

Description

The FiTech LS3/L92 Kit 750HP w/ Trans Control & LED Coil Pack Set (79014) provides a comprehensive upgrade for LS engines, replacing traditional carburetors with a modern electronic fuel injection system. This kit offers improved fuel efficiency, enhanced performance, and better drivability. It’s designed for applications targeting up to 750 horsepower and includes integrated transmission control for compatible GM transmissions.

KEY FEATURES AND BENEFITS:

• Self-Learning ECU: Simplifies the tuning process and adapts to various engine configurations.
• High-Performance Components: Features a 102mm throttle body and 55 lbs./hr injectors for optimal fuel delivery.
• Short LS3 Intake Manifold: Designed for improved airflow and performance.
• Integrated Transmission Control: Supports GM 4L60, 4L65, 4L70, and 4L80 transmissions.
• LED Coil Pack Set: Adds a modern visual element to the ignition system.
• Wide Compatibility: Works with 24X and 58X crank and cam signals, and various fuels including gasoline, methanol, and flex fuel.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Throttle Body: 102mm, cable-driven
• Injectors: 55 lbs./hr
• Intake Manifold: Short LS3 style, black anodized aluminum
• Transmission Control: Compatible with GM 4L60, 4L65, 4L70, 4L80
• ECU: Self-learning
• Sensors: Dual O2, MAP, IAT, TPS
• Fuel Compatibility: Gasoline, methanol, flex fuel

HOW TO USE:

• Install the Intake Manifold: Mount the intake manifold and throttle body onto the LS engine.
• Connect Fuel Rails and Injectors: Mount the fuel rails and connect the 55 lbs./hr injectors.
• Install Coil Pack Set: Install the LED coil pack set and connect the ignition wiring.
• Wiring Harness Connection: Connect the included wiring harness to the ECU and engine sensors.
• O2 Sensor Installation: Install the O2 sensors into the exhaust system.
• Transmission Control Wiring: Connect the transmission control wiring to the compatible GM transmission.
• Handheld Controller Setup: Mount the handheld controller and connect it to the ECU.
• Sensor Connections: Connect the MAP, IAT, and TPS sensors.
• Verification: Verify all connections and ensure proper grounding.
• Initial Startup: Start the engine and allow the self-learning ECU to calibrate.
• Monitoring and Adjustments: Use the handheld controller to monitor and adjust settings as needed.

BENEFITS OF USING THE FITECH LS3/L92 KIT 750HP W/ TRANS CONTROL & LED COIL PACK SET (79014):

• Improved fuel efficiency compared to traditional carburetors.
• Enhanced engine performance and power delivery.
• Simplified tuning with the self-learning ECU.
• Integrated transmission control for compatible GM transmissions.
• Visual enhancements with the LED coil pack set.
• Adaptability to various engine configurations and fuel types.

FEATURES:

• Corrosion Resistant: Black anodized aluminum intake manifold.
• High-Flow Throttle Body: 102mm cable-operated design for maximum airflow.
• Accurate Fuel Control: Dual Bosch wideband O2 sensors included.
• Boost Applications: 3-bar MAP sensor for handling boosted applications.
• Data Logging: Programmable touchscreen handheld controller with data logging capabilities.
• Signal Compatibility: Works with 24X and 58X crank and cam signals.
• Knock Sensor Control: Integrated for enhanced engine protection.
• High Airflow Rate: Capable of 1500 CFM airflow.
