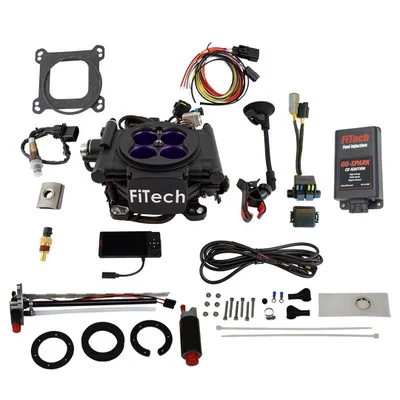

FiTech MeanStreet EFI 800HP Matte Black w/ Retrofit & CDI Box (93608)

Description

The FiTech MeanStreet EFI 800HP Matte Black w/ Retrofit & CDI Box (93608) offers a straightforward upgrade for high-performance engines. This kit combines electronic fuel injection benefits with ease of installation. It includes an in-tank fuel pump module, eight injectors, and an integrated ECU. Designed for 800 horsepower applications, it provides improved fuel delivery and engine response.

KEY FEATURES AND BENEFITS:

• High Power Capability: Supports up to 800 HP with a self-tuning feature, simplifying the tuning process.
• Go Fuel In-Tank Module: Features a 340 lph fuel pump, compatible with gasoline, E85, methanol, ethanol, and alcohol.
• Integrated Components: Includes an ECU, MAP sensor, and fuel pressure regulator for efficient operation.
• Nitrous Compatibility: Designed to work seamlessly with nitrous oxide systems.

SPECIFICATIONS:

• Maximum Horsepower: 800 HP
• Injection Style: Throttle body (4-barrel square bore)
• Fuel Pump Flow: 340 lph (in-tank)
• Injector Size: 62 lbs/hr (8 injectors)
• Throttle Body: 850 cfm, 43.00mm venturi
• Fuel Compatibility: Gasoline, E85, methanol, ethanol, alcohol
• ECU: Integrated
• Metering: Speed density (MAP-N)

HOW TO USE:

• Preparation: Disconnect the vehicle’s battery. Remove the existing carburetor and intake manifold (if needed).
• Installation: Mount the FiTech throttle body onto the intake manifold. Install the included fuel pump module in the fuel tank.
• Wiring: Connect the wiring harness to the vehicle’s electrical system, following the provided instructions. Connect sensors (oxygen, MAP, IAT, TPS).
• Fuel Lines: Connect the fuel lines to the throttle body and fuel pump module.
• Initial Setup: Connect the handheld display to the ECU. Input basic engine information.
• Startup: Reconnect the battery. Start the engine. The self-tuning feature will begin adjusting fuel delivery.
• Fine Tuning: Use the handheld display to make any necessary adjustments to the fuel settings.

BENEFITS OF USING THE FITECH MEANSTREET EFI 800HP MATTE BLACK W/RETROFIT & CDI BOX (93608):

• Improved Fuel Delivery: Enhances engine response compared to traditional carburetors.
• Simplified Tuning: The self-tuning feature makes adjustments easier.
• Increased Fuel Flexibility: Compatible with various fuel types for versatile applications.
• Easy Installation: Integrated components and in-tank fuel pump module simplify setup.
• Reliable Performance: Designed to deliver consistent performance for high-horsepower engines.

FEATURES:

• Integrated ECU: Includes a MAP sensor and fuel pressure regulator for optimal performance.
• Throttle Body: 850 CFM with a 43mm venturi diameter for effective fuel-air mixture.
• Fuel Injectors: 62 lbs/hr for enhanced fuel delivery.
• Metering Style: Utilizes speed density (MAP-N) for accurate fuel delivery.
• Throttle Body Flange: 4-barrel square bore for easy installation.
• Handheld Display: Included for user adjustments and monitoring.
• Material: Cast aluminum throttle body with a matte black finish for durability and aesthetics.
