FiTech Medium Profile Polished 6.25 Qts Engine Oil Pan (130102)

Description

The FiTech Standard Profile Polished 6 Qts Engine Oil Pan (130101) is specifically engineered for LS engine swaps in GM rear-wheel-drive vehicles. This standard profile oil pan is designed to provide adequate clearance and proper oil management in applications where chassis clearance is not a primary concern. With a 6-quart capacity, it supports up to a 4.25-inch crankshaft stroke, making it suitable for various stroker LS engine builds. Its cast aluminum construction and polished finish offer both durability and a clean aesthetic.

KEY FEATURES AND BENEFITS:

• Designed for LS engine swaps in GM rear-wheel-drive vehicles.
• Standard profile with 6.00 quarts total oil capacity (including filter).
• Supports up to a 4.25-inch crankshaft stroke.
• Cast aluminum construction with a polished finish.

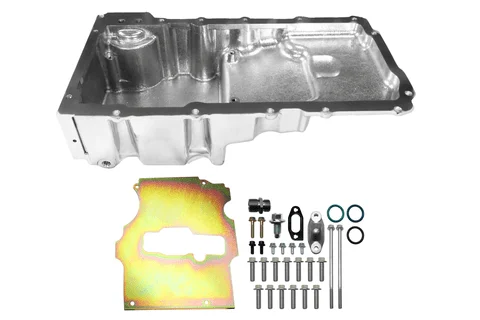

• Includes sump baffle, pickup tube, sump plug, oil filter stud, and oil passage cover.
• Compatible with standard oil filters (AC Delco, Mobil, Wix, K&N).
• Uses OEM LS3 dipstick and dipstick tube.
• Designed to use a GM full-length windage tray.
• OEM specifications including oil filter mounting, oil cooler port provision, NVH suppression, flange gasket sealing, structural rigidity, and bell-housing attachments.

SPECIFICATIONS:

• Brand: FiTech Fuel Injection
• Part Number: 130101
• Sump Style: Wet
• Oil Pan Style: Street/Strip
• Sump Location: Rear
• Oil Pan Capacity: 6.00 quarts
• Maximum Stroke: 4.250 inches
• Oil Pan Depth: 5.700 inches
• Material: Aluminum
• Finish: Polished
• Baffled: Yes
• Compatibility: GM rear-wheel-drive applications originally equipped with a Small Block or Big Block Chevy engine.
• Oil Filter Compatibility: AC Delco PF48/PF48E, Mobil M1-113, Wix 57060, K&N HP-1017.
• Dipstick Compatibility: OEM LS3 Dipstick and Dipstick Tube (GM 12669528 & GM 12625031).
• Windage Tray Compatibility: GM Full Length Windage Tray (GM Part #: 12611129).

HOW TO USE:

1. Drain the existing engine oil from the vehicle.
2. Remove the existing oil pan from the engine.
3. Install the included pickup tube onto the oil pump.
4. Apply the appropriate gasket and sealant to the FiTech 130101 oil pan.
5. Position the oil pan onto the engine block and secure it with the provided hardware.
6. Install the oil filter stud and oil passage cover.
7. Install the OEM LS3 dipstick and dipstick tube.
8. Install the GM full-length windage tray.
9. Install a compatible oil filter.
10. Fill the engine with the required amount of oil.
11. Start the engine and check for leaks.

BENEFITS OF USING THE FITECH STANDARD PROFILE POLISHED 6 QTS ENGINE OIL PAN (130101):

• Provides the necessary clearance for LS engine swaps in GM rear-wheel-drive vehicles.
• Ensures proper oil management with its 6-quart capacity and baffled sump.
• Maintains OEM compatibility for easy installation and integration.
• Offers a durable and aesthetically pleasing polished aluminum finish.
• Supports stroker LS engine builds with up to a 4.25-inch crankshaft stroke.

FEATURES:

• Cast aluminum construction for strength.
• Polished exterior for a clean look.
• Integrated sump baffle for oil control.
• Designed for use with standard oil filters.
• Accommodates OEM LS3 dipstick and tube.
• Includes necessary installation hardware.
• OEM oil cooler port provision.
• OEM engine NVH suppression.
• OEM flange gasket and sealing.
• OEM bell-housing attachments.
