FiTech Rebel LS 1000HP EFI Cath. Dual Pump, Reg & Coil w/LED (79892)

Description

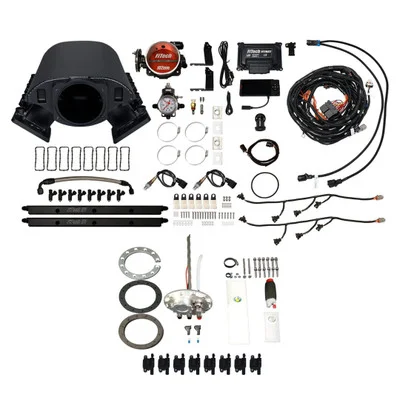

The FiTech Rebel LS 1000HP EFI Cath. Dual Pump, Reg & Coil w/LED (79892) is a complete solution designed for high-performance LS engine builds. This kit provides all the necessary components for a refined and powerful fuel injection system, supporting up to 1000 horsepower. It includes a short cathedral intake manifold, a dual in-tank fuel pump module, a fuel pressure regulator, and an 8-pack of LS3-style ignition coils. This system ensures precise fuel delivery and optimal engine management for various high-performance applications.

KEY FEATURES AND BENEFITS:

• Multi-port fuel injection for accurate fuel distribution.
• Speed density (MAP-N) metering for efficient engine control.
• Compatible with power adders like boost and nitrous oxide.
• Supports multiple fuel types, including alcohol, gasoline, methanol, and flex fuel.
• High-capacity fuel system and ignition components for reliable performance.
• All-inclusive master kit for an easier swap process.

SPECIFICATIONS:

• Maximum Horsepower: 1000 HP
• Injection Style: Multi-port
• Timing Control Compatible: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank dual pump)
• Transmission Controller Included: No
• Metering Style: Speed density (MAP-N)
• Intake Manifold Included: Yes (Short cathedral)
• Intake Material: Aluminum, Black Anodized
• Throttle Body: 102mm, 1500 cfm
• Injectors: 80 lbs./hr
• Fuel Type: Alcohol, Gasoline, Methanol, Flex
• Fuel Pressure Regulator Included: Yes
• MAP, IAT, TPS Sensors Included: Yes
• Compatibility: Standard deck LS engines, GM LS2 4-bolt throttle body flange.

HOW TO USE:

1. Preparation: Remove the existing intake and fuel system from the LS engine.
2. Fuel System Installation: Install the in-tank dual fuel pump module and connect the fuel lines. Mount the fuel pressure regulator and connect the pressure gauge.
3. Intake Manifold Installation: Mount the short cathedral intake manifold onto the engine.
4. Throttle Body and Injector Installation: Install the 102mm throttle body and 80 lbs./hr injectors onto the intake manifold.
5. Ignition Coil Installation: Mount the LS3-style ignition coils and connect the wiring harness.
6. Sensor Installation: Install the MAP, IAT, and TPS sensors, and connect the wiring.
7. ECU and Wiring Harness Connection: Connect the ECU and complete the wiring harness connections.
8. Calibration: Use the included calibration module to set up the engine parameters.
9. Testing and Tuning: Start the engine and perform necessary tuning adjustments for optimal performance.

BENEFITS OF USING FITECH REBEL LS 1000HP EFI CATH. DUAL PUMP, REG & COIL W/LED (79892):

• Complete and integrated solution for high-horsepower LS engine builds.
• Precise fuel and ignition control for improved performance and efficiency.
• Comprehensive kit simplifies installation.
• Multi-fuel compatibility allows flexibility in fuel selection.
• Supports power adders for performance enthusiasts.

FEATURES:

• High-volume fuel delivery system.
• Precise ignition timing control.
• Robust aluminum intake manifold.
• Large bore throttle body for increased airflow.
• High flow-rate fuel injectors.
• Comprehensive sensor suite.
• User-friendly calibration module.
• Durable wiring harness.
• LED indicator coils.
• In-tank fuel pump module.
