FiTech Rebel LS 500HP EFI Short Cath, Inline Hose & Coil w/LED (79188)

Description

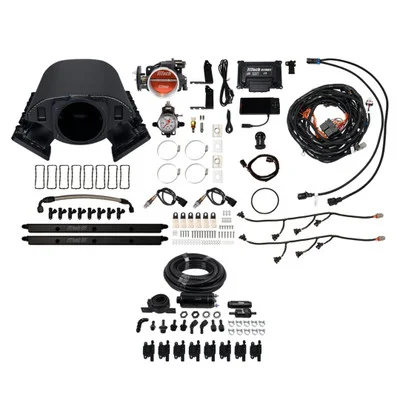

The FiTech Rebel LS 500HP EFI Short Cath, Inline Hose & Coil w/LED (79188) is a complete electronic fuel injection solution designed to upgrade and modernize LS engine conversions. This system provides precise fuel delivery and engine management, resulting in improved performance and efficiency. The kit includes a short cathedral port intake manifold, a comprehensive fuel delivery system, and LS3 coil packs with LED indicators. It’s engineered to deliver reliable performance for engines up to 500 horsepower, while also enhancing the engine bay’s aesthetic.

KEY FEATURES AND BENEFITS:

• Provides precise fuel delivery and optimized engine control for LS engines.
• Improves throttle response, horsepower, and fuel efficiency.
• Features a refined design with a cleaner profile and redesigned fuel rail bracket.
• Includes a complete fuel delivery system with a 255 LPH external fuel pump and fuel filters.
• Compatible with boost and nitrous oxide applications, featuring a 3 Bar MAP sensor.
• Supports E85 fuel.
• Complete kit including intake manifold, ECU, sensors, throttle body, wiring harness, fuel rails, and more.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Timing Control Compatible: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump Included: Yes (255 LPH external)
• Metering Style: Speed density (MAP-N)
• Intake Material: Aluminum (black anodized)
• Throttle Body: 92mm, 1250 cfm
• Injectors: 36 lbs/hr
• Fuel Type Compatibility: Alcohol, gasoline, methanol, flex fuel
• Compatibility: LS series engines

HOW TO USE:

• Installation of Intake Manifold: Mount the provided short cathedral port intake manifold onto the LS engine, ensuring proper gasket sealing.
• Fuel System Setup: Install the 255 LPH external fuel pump, fuel filters, and fuel lines according to the provided instructions. Connect the fuel pressure regulator.
• Sensor and Wiring Installation: Mount the MAP, IAT, TPS, and oxygen sensors. Connect the wiring harness to the ECU and all sensors.
• Throttle Body Installation: Mount the 92mm throttle body onto the intake manifold. Connect the throttle cable brackets.
• Ignition System Installation: Install the LS3 coil packs with LED indicators. Connect the ignition wiring.
• ECU Programming: Connect the calibration module to the ECU and configure the settings according to your engine specifications.
• Testing and Adjustment: Start the engine and verify proper fuel delivery and engine performance. Make any necessary adjustments to the ECU settings.

BENEFITS OF USING FITECH REBEL LS 500HP EFI SHORT CATH, INLINE HOSE & COIL W/LED (79188):

• Modernizes LS engine conversions with advanced fuel injection technology.
• Provides precise fuel control for optimal engine performance.
• Enhances the engine bay’s appearance with a sleek and refined design.
• Simplifies installation with a complete kit and comprehensive instructions.
• Improves fuel efficiency and throttle response.
• Allows for use of alternative fuels.

FEATURES:

• Thicker gauge manifold for quieter injection.
• Redesigned fuel rail bracket.
• 3 Bar MAP sensor.
• Inline external fuel pump.
• Billet aluminum fuel filters.
• LS3 coil pack with LED indicators.
