FiTech Rebel LS 500HP EFI Short Cathedral Intake & Inline Pump (71088)

Description

The FiTech Rebel LS 500HP EFI Short Cathedral Intake & Inline Pump (71088) is a comprehensive solution designed to modernize and enhance the performance of LS engines. This kit provides a complete electronic fuel injection (EFI) conversion, offering improved efficiency and power. The system features a low-profile cathedral port intake manifold, a 92mm throttle body, 36 lb/hr injectors, and a self-tuning ECU. It also includes a complete fuel delivery system with an inline 255 LPH fuel pump, fuel lines, and filters. The “Rebel” design focuses on a cleaner aesthetic, with redesigned fuel rail brackets and a streamlined profile. This system is compatible with boost/nitrous applications and E85 fuel.

KEY FEATURES AND BENEFITS:

• EFI Conversion: Converts LS engines to modern electronic fuel injection for improved performance and efficiency.
• Self-Tuning ECU: Simplifies setup and optimizes engine performance automatically.

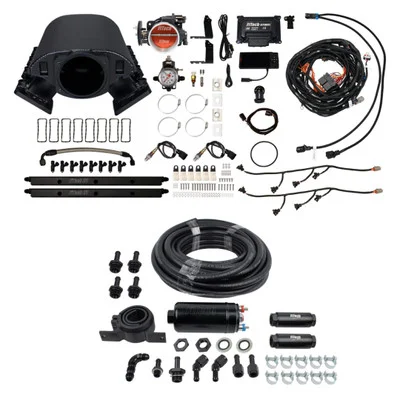

• Complete Kit: Includes intake manifold, throttle body, injectors, ECU, sensors, and fuel system components.
• Enhanced Aesthetic: “Rebel” design provides a cleaner, more polished engine bay appearance.
• Power Adder Compatibility: Boost/Nitrous compatible with a 3-bar MAP sensor (up to 27 PSI).
• Alternative Fuel Compatibility: Works with E85 fuel.
• Sequential Fuel and Spark Control: Improves ignition and fuel delivery precision.
• Reliable Fuel System: Includes a 255 LPH inline fuel pump for consistent fuel delivery.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Timing Control Compatible: Yes
• Power Adder Compatible: Yes (Boost/Nitrous oxide)
• ECU Included: Yes
• Fuel Pump Included: Yes
• Transmission Controller Included: No
• Metering Style: Speed density (Map-N)
• Intake Manifold Material: Aluminum
• Intake Manifold Finish: Black Anodized
• Throttle Body Mounting Flange: GM LS2 4-bolt
• Throttle Body Diameter: 92mm
• Injectors: 36 lbs/hr
• Fuel Pump Style: External inline fuel pump
• Fuel Compatibility: Alcohol, Gasoline, Methanol, E85
• Compatibility: LS1, LS2, LS6, and similar standard deck LS engines

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing intake manifold and fuel system.
• Install Intake Manifold: Position the FiTech Rebel LS intake manifold, ensuring proper gasket placement and torque specifications.
• Mount Throttle Body & Injectors: Attach the 92mm throttle body and install the 36 lb/hr injectors into the fuel rails.
• Install Sensors: Secure the MAP sensor, IAT sensor, and oxygen sensors as instructed.
• Connect ECU and Harness: Mount the ECU and attach the wiring harness, ensuring all connections are secure.
• Set Up Fuel System: Install the 255 LPH fuel pump, fuel lines, and filters. Connect the fuel pressure regulator.
• Configure Handheld Controller: Connect the handheld monitor and follow the on-screen instructions for initial setup and calibration.
• Initial Startup & Tuning: Start the engine and allow the self-tuning ECU to adjust fuel and spark parameters. Fine-tune using the handheld controller.
• Final Checks: Inspect all connections, check for fuel leaks, and test drive the vehicle for any necessary adjustments.

BENEFITS OF USING THE FiTech REBEL LS 500HP EFI SHORT CATHEDRAL INTAKE & INLINE PUMP (71088):

• Enhanced Engine Performance: Improves throttle response and power output.
• Increased Fuel Efficiency: Optimized fuel delivery reduces waste and improves mileage.
• Self-Learning Tuning: Eliminates manual tuning with automatic adjustments.
• Clean Engine Bay Look: Modern design enhances the overall aesthetic.
• Reliable Fuel Delivery: Includes a complete fuel system for dependable performance.
• Power Adder Compatibility: Works seamlessly with boost and nitrous setups.
• Flexible Fuel Options: Supports gasoline, methanol, alcohol, and E85 fuels.

FEATURES:

• Thicker gauge manifold for reduced injection noise
• Redesigned fuel rail brackets for enhanced aesthetics
• Complete sensor package included (MAP, IAT, Oxygen)
• Magnetic handheld mount for easy access
• Multiple throttle cable bracket options
• Fuel pressure regulator with pressure gauge
• EV1 injector sub harnesses
• Oxygen sensor extension harness
