FiTech Ultimate LS 750 HP EFI Long Intake w/ Master Kit (76308)

Description

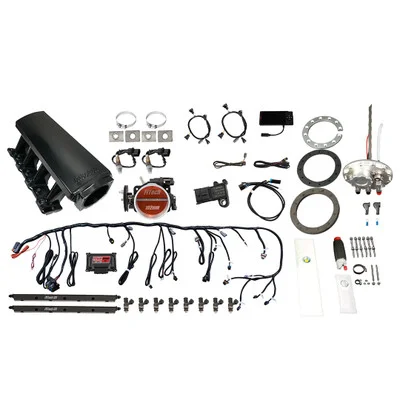

The FiTech Ultimate LS 750 HP EFI Long Intake w/ Master Kit (76308) provides a comprehensive fuel injection solution for LS engines with cathedral port cylinder heads. Designed for ease of installation and performance, this kit includes everything needed to manage fuel and spark, making LS engine swaps straightforward.

KEY FEATURES AND BENEFITS:

• High Performance: Rated for up to 750 horsepower, suitable for high-performance applications.
• Optimal Airflow: Features a long runner cathedral intake manifold to ensure efficient power delivery.
• Complete System: Includes an ECU, in-tank fuel pump, 55 lb/hr injectors, and a 102mm throttle body.
• Boost and Nitrous Support: Designed for compatibility with power adders.
• Fuel Flexibility: Compatible with various fuel types including gasoline, alcohol, methanol, and flex fuel.
• Accurate Fuel Delivery: Utilizes speed density (MAP-N) metering for precise fuel management.
• Comprehensive Sensors: Comes with all necessary sensors (MAP, IAT, TPS, oxygen) and a handheld controller for easy tuning.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Timing Control: Yes
• Power Adder Compatibility: Boost/Nitrous oxide
• ECU Included: Yes
• Fuel Pump Included: Yes (In-tank)
• Metering Style: Speed density (MAP-N)
• Intake Manifold: Aluminum, Black Anodized
• Throttle Body: 102mm, 1500 cfm
• Injectors: 55 lbs/hr
• Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Install the Intake Manifold: Mount the long runner cathedral intake manifold onto the engine’s cylinder heads, ensuring a proper seal.
• Mount the Throttle Body: Attach the 102mm throttle body to the intake manifold.
• Install Fuel Rails and Injectors: Secure the fuel rails and install the 55 lbs/hr injectors into the intake manifold.
• Install Sensors: Mount the MAP, IAT, TPS, and oxygen sensors in their designated locations.
• Install Fuel Pump: Install the in-tank fuel pump module within the fuel tank.
• Connect Wiring Harness: Connect the wiring harness to the ECU and all sensors and actuators, following the provided instructions.
• Connect ECU: Mount the ECU in a safe location.
• Initial Setup: Use the handheld controller to input basic engine parameters and perform initial setup.
• Start Engine and Tune: Start the engine and use the handheld controller to monitor and adjust fuel and spark parameters as needed. The self-learning feature will assist in fine-tuning.

BENEFITS OF USING THE FITEC ULTIMATE LS 750 HP EFI LONG INTAKE W/ MASTER KIT (76308):

• Simplified LS Engine Swaps: Provides a complete EFI solution to streamline installations.
• Enhanced Engine Performance: Offers precise fuel and spark control for improved output.
• Increased Power Output: Supports boost and nitrous applications for added performance.
• Versatile Fuel Compatibility: Accommodates various engine configurations.
• Easy Setup and Tuning: Handheld controller and self-learning technology simplify adjustments.
• Reliable Engine Control: Includes essential sensors and ECU for optimal performance.

FEATURES:

• Long Runner Intake Design: Improves airflow for better performance.
• 102mm Throttle Body: Supports high CFM requirements for optimal engine performance.
• 55 lbs/hr Fuel Injectors: Ensure sufficient fuel delivery for high-performance applications.
• In-Tank Fuel Pump Module: Provides convenient fuel delivery.
• Speed Density (MAP-N) Fueling Strategy: Ensures accurate fuel management.
• Compatibility with 24x and 58x Cam Sensors: For reliable timing control.
• Knock Sensor Control: Enhances engine safety and performance.
• 3-Bar MAP Sensor: Suitable for boosted applications.
• Handheld Touchscreen Controller: For easy tuning and monitoring.
• Black Anodized Aluminum Intake Manifold: Durable and stylish design.
