FiTech Ultimate LS Tall LS1/LS2/LS6 750HP w/ In-Tank Module (70008)

Description

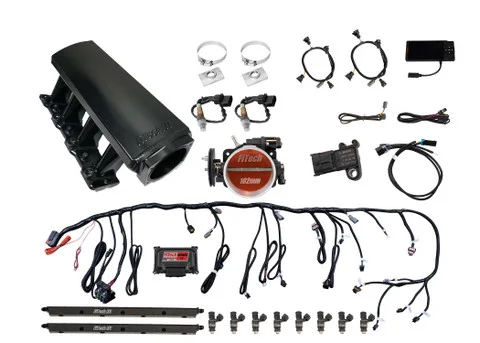

The FiTech Ultimate LS Tall LS1/LS2/LS6 750HP w/ In-Tank Module (70008) provides a comprehensive solution for upgrading your cathedral port LS engine to electronic fuel injection. This kit includes all essential components for a seamless conversion, delivering improved performance and tuning flexibility. Designed for both naturally aspirated and boosted applications, the system is rated for up to 750 horsepower.

KEY FEATURES AND BENEFITS:

• Self-Learning ECU: Simplifies the tuning process for optimal performance.
• Fuel Compatibility: Works with gasoline, alcohol, methanol, and flex fuel.
• 102mm Throttle Body: Enhances airflow for improved power delivery.
• Long Runner Intake Manifold: Optimizes engine performance.
• Timing Control and Data Logging: Allows for precise adjustments and performance monitoring.

SPECIFICATIONS:

• Maximum Horsepower: 750 HP
• Injection Style: Multi-port
• Throttle Body: 102mm Billet Aluminum
• Injectors: 55 lbs./hr
• Fuel Compatibility: Gasoline, Alcohol, Methanol, Flex
• ECU: Self-learning, with 4.5-inch Touchscreen
• Intake Manifold: Aluminum, Black Anodized
• MAP Sensor: 3-bar (Boost Compatible)
• Transmission Control: Optional (not included in base kit)

HOW TO USE:

• Install the Intake Manifold: Replace the existing intake with the FiTech manifold, ensuring proper gasket sealing.
• Mount the Throttle Body: Attach the 102mm throttle body to the manifold, connecting the throttle cable.
• Install Fuel Injectors and Rails: Secure the 55 lbs./hr injectors and fuel rails, connecting the fuel lines.
• Connect Wiring Harness: Plug in the provided wiring harness to the injectors, sensors, and ECU.
• Mount Sensors: Install the MAP, IAT, and TPS sensors, connecting them to the harness.
• Install Oxygen Sensor: Mount the oxygen sensor in the exhaust system.
• Connect ECU: Mount the ECU and connect the handheld controller.
• Initial Setup: Follow the on-screen instructions on the handheld controller for initial setup and configuration.
• Start and Self-Learn: Start the engine and allow the ECU to self-learn the fuel parameters.
• Fine Tune (Optional): Use the handheld controller to fine-tune settings as needed.

BENEFITS OF USING FITECH ULTIMATE LS TALL LS1/LS2/LS6 750HP W/ IN-TANK MODULE (70008):

• Improved engine performance and throttle response.
• Simplified tuning with self-learning ECU.
• Compatibility with boosted applications.
• Enhanced fuel efficiency.
• Comprehensive kit for a complete EFI conversion.
• Data logging capabilities for performance analysis.
• Wide fuel compatibility.

FEATURES:

• Black Anodized Aluminum Intake Manifold: Durable and aesthetically pleasing.
• High-Flow, Cable-Operated Throttle Body: Provides responsive performance.
• Dual Wideband Oxygen Sensor Support: For accurate air-fuel ratio monitoring.
• Knock Sensor Control: Enhances engine safety and performance.
• 24X and 58X Crank and Cam Compatibility: Versatile for various LS applications.
• Compatible with Car and Truck Coils: Flexible installation options.
• In-Tank Fuel Pump Included: Ensures consistent fuel delivery.
• Touch Screen Hand Held Controller: For easy setup and monitoring.
