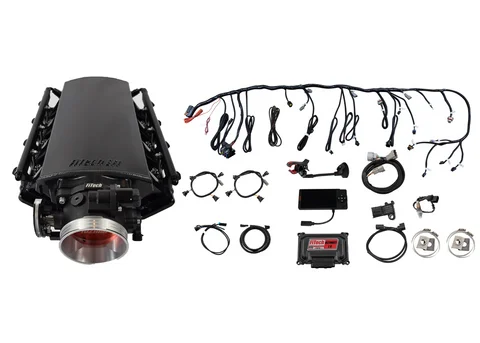

FiTech Ultimate LS1/LS2/LS6 500HP Kit w/Trans Control (70002)

Description

The FiTech Ultimate LS1/LS2/LS6 500HP Kit w/Trans Control (70002) is a complete, self-tuning fuel injection solution for LS1, LS2, and LS6 engines. Designed for straightforward installation, it simplifies the process of retrofitting LS engines into various vehicles. This kit handles up to 500 horsepower and includes electronic transmission control for GM 4L60, 4L65, 4L80, and 4L85 automatic transmissions. It provides a comprehensive package, eliminating the need to source mismatched parts and complex wiring.

KEY FEATURES AND BENEFITS:

• 92mm Throttle Body: Billet aluminum design for enhanced airflow.
• Fabricated Intake Manifold: Made of aluminum for improved strength and performance.
• Self-Learning ECU: Features a touchscreen controller for easy tuning and adjustments.
• Precise Control: Sequential fuel and spark control with a Bosch wideband oxygen sensor.
• Integrated Transmission Control: Allows adjustments to shift points, firmness, and downshifting.
• Complete Kit: Includes 36 lb/hr flow-matched injectors and all necessary sensors (MAP, IAT, TPS, IAC).
• Simplified Installation: Complete wiring harness makes it suitable for DIY enthusiasts and professional tuners.

SPECIFICATIONS:

• Maximum horsepower: 500 HP
• Injection style: Multi-port
• Timing control: Yes
• Transmission control: Yes (GM 4L60, 4L65, 4L80, 4L85)
• Intake manifold material: Aluminum
• Throttle body diameter: 92mm
• Injector size: 36 lb/hr
• Fuel compatibility: Alcohol, Gasoline, Methanol, Flex Fuel
• Engine compatibility: LS1, LS2, LS6 (Cathedral Port Heads)

HOW TO USE:

• Install: Attach the intake manifold and throttle body onto the engine.
• Mount: Secure the fuel rails and connect the injectors.
• Install Sensors: Add the included sensors (MAP, IAT, TPS, IAC) and the oxygen sensor.
• Connect Wiring: Attach the wiring harness to the ECU and engine components using the factory coil pack sub-harness.
• Transmission Control: Connect the transmission control harness if using a compatible GM automatic transmission.
• Touchscreen Setup: Mount the touchscreen controller and connect it to the ECU.
• Verify Connections: Ensure all connections are secure and the fuel system is properly set up (fuel pump, lines).
• Power On: Activate the system and follow the touchscreen prompts for initial setup.
• Self-Learning: Allow the self-learning ECU to adjust fuel and spark parameters during initial driving.
• Tuning: Fine-tune settings as necessary using the touchscreen controller.

BENEFITS OF USING THE FITECH ULTIMATE LS1/LS2/LS6 500HP KIT W/TRANS CONTROL (70002):

• Facilitates simplified LS engine installation and tuning.
• Integrated transmission control for GM automatic transmissions enhances drivability.
• Self-tuning capabilities reduce setup time and complexity for users.
• Comprehensive kit eliminates the need for sourcing individual parts.
• Provides precise fuel and spark control for optimal engine performance.

FEATURES:

• Billet fuel rails: Equipped with AN fittings and a fuel crossover for efficient fuel delivery.
• Touchscreen controller: Facilitates configuration and monitoring.
• Crank and cam compatibility: Supports both 24X and 58X configurations.
• Tach output driver: Compatible with most tachometers (5V).
• Speedometer output: Includes a driver for most speedometers.
• Fuel pump relay output: Provides easy integration into the vehicle’s electrical system.
• O2 sensor bung kit: Stainless kit for clamp or weld-on installation.
