FiTech Ultimate LS7 500HP Square Port Kit (70015)

Description

The FiTech Ultimate LS7 500HP Square Port Kit (70015) provides a complete electronic fuel injection solution for LS7 engines. Designed for straightforward installation, this kit simplifies the transition from carbureted or older EFI systems. It includes all essential components for a high-performance induction upgrade, excluding transmission control.

KEY FEATURES AND BENEFITS:

• High Power Support: Designed for LS7 engines, supporting up to 500 horsepower.
• Self-Tuning ECU: Automatically adjusts fuel and spark parameters, simplifying setup.

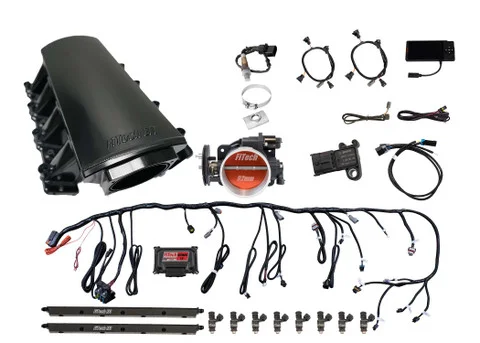

• Included Components: Comes with a 92mm throttle body, 36 lbs./hr. injectors, and a plug-and-play wiring harness.
• Touchscreen Controller: Allows for easy programming and monitoring of the system.
• Modern Fuel Delivery: Facilitates a modern and efficient fuel delivery system.

SPECIFICATIONS:

• Maximum Horsepower: 500 HP
• Injection Style: Multi-port
• Timing Control: Yes
• ECU Included: Yes
• Fuel Pump: Not Included
• Transmission Control: Not Included
• Throttle Body: 92mm
• Injector Size: 36 lbs./hr.
• Intake Manifold: Aluminum, Black Anodized
• Fuel Type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Preparation: Disconnect the battery and remove the existing intake and fuel system.
• Installation: Mount the FiTech intake manifold onto the LS7 engine.
• Sensor Installation: Install MAP, IAT, TPS, and O2 sensors.
• Injector and Fuel Rail Setup: Mount the fuel injectors and connect the fuel rails.
• Throttle Body Mounting: Attach the 92mm throttle body.
• Wiring Harness Connection: Connect the plug-and-play wiring harness to all sensors, injectors, and the ECU.
• ECU Setup: Mount the ECU and connect the touchscreen controller.
• Initial Power-Up: Reconnect the battery and power on the system.
• Self-Learning Process: Allow the ECU to self-learn and adjust fuel and spark parameters.
• Fine-Tuning: Use the touchscreen controller to fine-tune settings as needed.

BENEFITS OF USING THE FITECH ULTIMATE LS7 500HP SQUARE PORT KIT (70015):

• Simplified EFI conversion for LS7 engines.
• Improved fuel efficiency and performance.
• Reduced tuning complexity with self-learning ECU.
• Modernized engine control system.
• Complete kit for straightforward installation.

FEATURES:

• Durable Construction: Black anodized aluminum intake manifold.
• High-Performance Throttle Body: 92mm billet aluminum throttle body.
• Flow-Matched Injectors: 36 lbs./hr. fuel injectors.
• Easy Installation: Plug-and-play wiring harness.
• User-Friendly Interface: 4.5-inch touchscreen controller.
• Sequential Control: Sequential fuel and spark control for optimal performance.
• Compatibility: 24X and 58X crank and cam compatibility.
• O2 Sensor: Wideband O2 sensor included.
• Included Sensors: MAP, IAT, and TPS sensors included in the kit.
• Flexible Metering: Supports speed density (Map-N) or speed throttle (Alpha-N) metering styles.
