Description

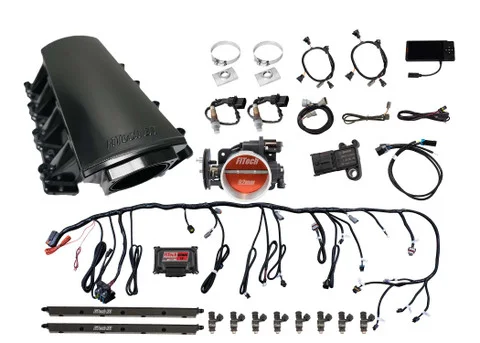

The FiTech Ultimate LS7 500HP Square Port Kit w/Trans Control (70016) is a complete electronic fuel injection system designed for LS7 engines. This kit simplifies the process of installing and tuning your LS engine, providing a user-friendly experience for both DIY enthusiasts and professional tuners. It includes all necessary components to complete your LS engine’s induction system, offering a straightforward path to improved performance and efficiency.
KEY FEATURES AND BENEFITS:
- Self-Tuning Capabilities: Eliminates the need for complex ECU adjustments.
- Engine-Specific Design: Tailored for LS7 engines with square port heads for optimal fitment.
- Integrated Transmission Control: Manages GM 4L60, 4L65, 4L70, and 4L80 series transmissions electronically.
- High-Flow Components: Includes a 92mm throttle body, high-volume fuel rails, and an aluminum intake manifold.
- Corrosion Resistance: Finished in black anodized aluminum for durability.
- User-Friendly Controller: A color touchscreen handheld controller for easy programming and data logging.
SPECIFICATIONS:
- Maximum Horsepower: 500 HP
- Injection Style: Multi-port
- Timing Control: Yes
- Power Adder Compatible: Yes (Boost/Nitrous oxide)
- ECU Included: Yes
- Transmission Controller: Yes
- Metering Style: Speed density (Map-N) or Alpha-N
- Intake Material: Aluminum
- Throttle Body: 92mm, black anodized
- Injectors: 36 lbs./hr.
- Fuel Type: Gasoline, Alcohol, Methanol, Flex
HOW TO USE:
- Installation: Install the intake manifold, throttle body, and fuel rails onto the LS7 engine.
- Wiring: Connect the plug-and-play wiring harness to the engine sensors and transmission.
- Sensor Installation: Mount the oxygen sensor in the exhaust system.
- ECU Connection: Connect the handheld touchscreen controller to the ECU.
- Initial Setup: Input engine parameters using the handheld controller.
- Startup: Start the engine and allow the system to self-tune.
- Transmission Setup: Configure transmission parameters using the controller.
- Fine-Tuning: Make adjustments as needed using the handheld controller.
BENEFITS OF USING THE FITECH ULTIMATE LS7 500HP SQUARE PORT KIT W/TRANS CONTROL (70016):
- Simplified LS engine installation and tuning.
- Improved engine performance and efficiency.
- Electronic transmission control for optimized shifting.
- User-friendly self-tuning capabilities.
- Comprehensive system with all necessary components.
- Ability to run different fuel types.
FEATURES:
- Durable Construction: Black anodized aluminum for long-lasting performance.
- High-Flow Throttle Body: 92mm, cable-operated for quick response.
- Precise AFR Control: Bosch wideband oxygen sensor for accurate measurements.
- Easy Installation: Stainless oxygen sensor bung included.
- Versatile Compatibility: Works with car and truck coil packs.
- Secure Connections: AN fittings and fuel crossover for reliability.
- Custom Camshaft Support: Compatible with various camshaft profiles.
- Vacuum Requirements: Designed for engines with at least 6 inches of vacuum at idle.
- Signal Compatibility: 24X and 58X crank and cam signal compatibility.
- Programmable Controller: Touchscreen handheld controller with data logging capabilities.
