FiTech Ultimate Rebel LS 1000 HP EFI System w/ Trans Control (70093)

Description

The FiTech Ultimate Rebel LS 1000 HP EFI System w/ Trans Control (70093) is a comprehensive solution designed for high-performance LS engine conversions. This multi-port fuel injection system provides precise fuel delivery and engine control, optimizing vehicle performance and efficiency. Featuring a self-tuning ECU and transmission control, it simplifies installation and operation. The system includes all necessary components for a complete installation, from the intake manifold and throttle body to sensors and wiring harnesses.

KEY FEATURES AND BENEFITS:

• Achieve up to 1000 horsepower with this high-performance EFI system.
• Enjoy precise fuel delivery and optimized engine control for improved performance.
• Benefit from self-tuning capabilities for simplified setup and operation.
• Utilize the included transmission control for seamless integration.

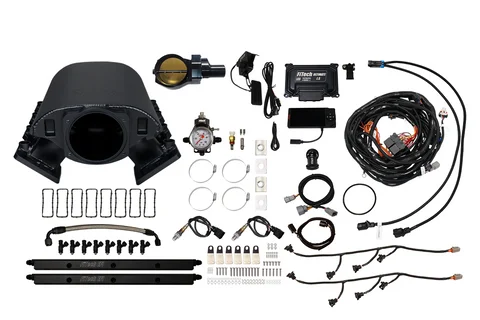

• Install a complete kit with all necessary components, including manifold, ECU, sensors, and wiring.
• Cleaner engine bay look.

SPECIFICATIONS:

• Maximum Horsepower: 1000 HP
• Injection Style: Multi-port
• Timing Control: Yes
• Power Adder Compatibility: Yes (Boost/Nitrous)
• ECU Included: Yes
• Transmission Controller: Yes
• Metering Style: Speed Density (MAP-N)
• Intake Material: Aluminum (Black Anodized)
• Throttle Body: 102mm (Black Billet Aluminum)
• Injectors: 80 lbs/hr
• Fuel Type: Alcohol, Gasoline, Methanol, Flex

HOW TO USE:

• Begin by installing the intake manifold and throttle body onto the LS engine.
• Mount the ECU in a suitable location within the vehicle.
• Connect the wiring harnesses to the appropriate sensors and components.
• Install the fuel rails and injectors, ensuring proper connections.
• Attach the oxygen sensors and other required sensors.
• Connect the transmission control harness.
• Install the fuel pressure regulator and ensure proper fuel line connections.
• Use the handheld monitor to configure initial settings and monitor engine performance.
• Start the engine, and allow the self-tuning ECU to optimize fuel delivery.
• Fine-tune the system using the handheld monitor if desired.

BENEFITS OF USING THE FITECH ULTIMATE REBEL LS 1000 HP EFI SYSTEM W/ TRANS CONTROL (70093):

• Improved engine performance and efficiency.
• Simplified installation with a complete kit and self-tuning capabilities.
• Enhanced engine bay aesthetics with a cleaner, refined design.
• Reliable and consistent fuel delivery for optimal performance.
• Transmission control included.
• E85 and boost/nitrous ready.

FEATURES:

• Thicker gauge manifold for quieter injection.
• Redesigned fuel rail bracket for enhanced visual appeal.
• 3 Bar MAP sensor for boost/nitrous compatibility.
• 102mm throttle body with integrated sensors.
• 80 lbs/hr fuel injectors.
• Complete wiring harness with sub-harnesses.
• Handheld monitor for real-time adjustments.
• Magnetic handheld mount.
• Oxygen sensor bung kit included.
• Throttle cable brackets included.
