Description

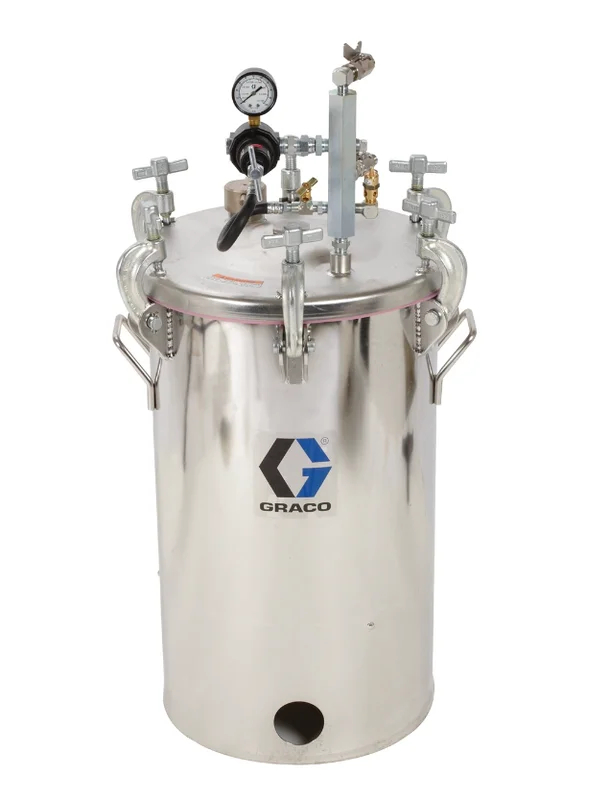

10 Gallon High Pressure (HVLP) Pot, Regulated to 100 psi, ASME Rated, 33.9 in, 76 lbs SST
Designed with electroplated surfaces that prevent debris build-up and keep your operation free of contaminants, Graco pressure pots are precision welded and surfaced.
- ASME rated to ensure it meets factory standards
- High quality stainless steel design is compatible with many materials
- Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir
Technical Specifications
| INLET SIZE (IN) | 1/4 |
|---|---|
| INLET THREAD TYPE | NPT |
| MAXIMUM VOLUME CAPACITY (GAL) | 10 |
| MAXIMUM WORKING PRESSURE (PSI) | 100 |
| OUTLET SIZE (IN) | 3/8 |
| OUTLET THREAD TYPE | NPSM |
| OVERALL HEIGHT (IN) | 33.87 |
| OVERALL WIDTH (IN) | 19 |
| WEIGHT (LB) | 76 |
| WETTED MATERIAL | Stainless Steel, Santoprene, Polyamide, PET |
| TYPE | Tank |
| INLET THREAD GENDER | Male |
| OUTLET THREAD GENDER | Male |
