Description
Features

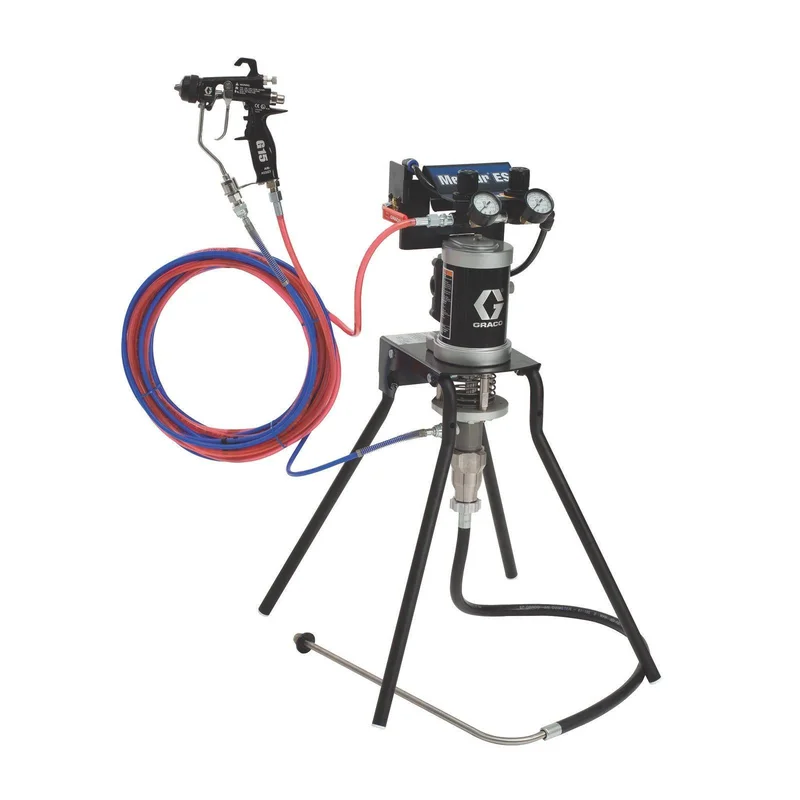

The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
- Quick flush system requires less than 1 minute to flush
- 45% less material to fill the system than the leading competitors
- Delivers a superior, consistent spray finish
- Low profile spray package makes it easy to transport
- Easily set and monitor air control, plus an integrated carrying handle for transport
- Air motor provides consistent finishes with smooth, rapid changeover
- Suction hose and strainer leaves less material in the supply container
- Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
| Technical Specification | |
| Convertible | Non-Convertible |
|---|---|
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Gun Included | 1 |
| Gun Model | G15 |
| Gun Technology | Air-Assisted |
| Gun Type | Air-Assisted |
| Hose Inlet Diameter (in) | 0.125 |
| Includes | G15 Gun, Suction Hose, Stand Mount |
| Maximum Flow Rate (GPM) | 0.4 |
| Maximum Hose Length (ft) | 25 |
| Maximum Sound Pressure Level (dB(A)) | 76.5 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (psi) | 1500 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Stand Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 15:1 |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Pneumatic Piston Pump |
| Series | ES |
| Spray Type | Air-Assisted |
| Standards Met | ATEX, CE |
| Type | Air-Assisted Airless Sprayer |
| Weight (lb) | 23 |
| Wetted Material | Stainless Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene |
