Description
Features

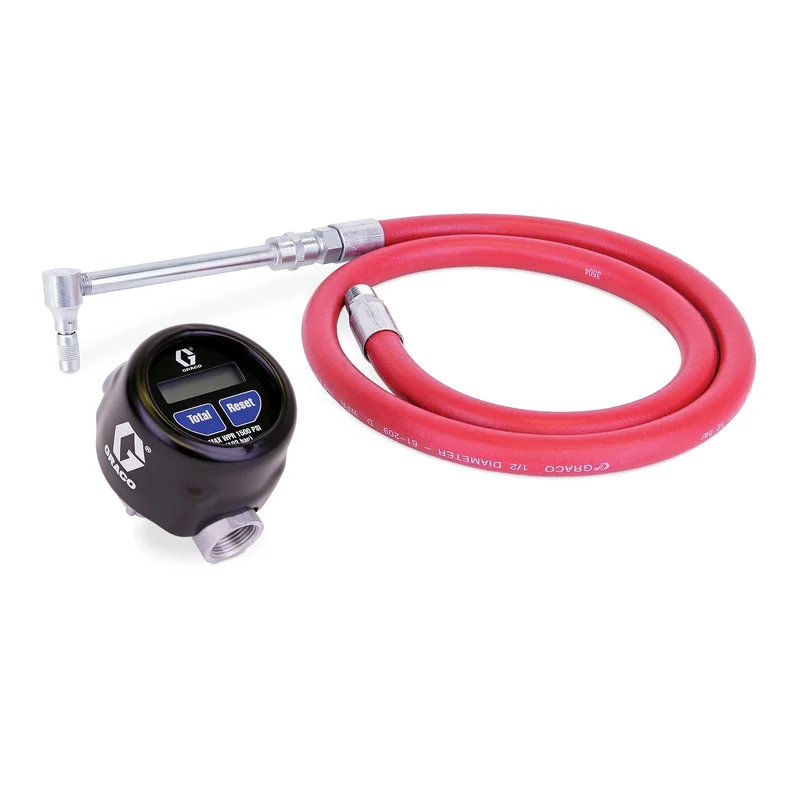

These durable, easy-to-use in-line electronic dispense meters are designed with automotive dealerships, fast lube centers, and service shops in mind.
Typical applications include automotive, fast lube centers, service shops, fleet service facilities, and in-plant.
- Rugged stainless steel body remains corrosion free in hard environments for years of trouble-free service.
- Large, easy-to-read LCD display show dispense quantities.
- Heavy-duty construction for indoor or outdoor use.
- Simple operator controls and measures in pints, quarts, liters or gallons.
- Easy battery replacement, operates on single 9V alkaline battery.
- Tracks totals in two modes: reset total for a periodic dispense history and non-reset total for the meter’s total dispense history.
- Kit includes extension and nozzle for gear lube.
Specifications
UPC Product: 00633955781191 Family Code: FAMMLD Unit of Measure: EA Height: 5 IN |12.7 CM Length: 14.1 IN |35.814 CM Width: 10.3 IN |26.162 CM Volume: .42 FT3 |.012 M3 Chargeable Weight: 4.75 LBS | 2.15 KG
Technical Specifications
| Battery Chemistry | Alkaline |
|---|---|
| Battery Size | 9 V |
| For Use With | 非合成油和合成油(用于马达、齿轮和变速箱), Petroleum- and synthetic-based oils (motor, gear and ATF), Aceites minerales y sintéticos (motor, engranajes y ATF) |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 0.5 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Type | NPT |
| Maximum Working Pressure (bar) | 34 |
| Maximum Working Pressure (kPa) | 3400 |
| Maximum Working Pressure (psi) | 500 |
| Meter Accuracy (%) | ±0.5 |
| Unit of Measure | Quart, Pint, Gallon, Liter |
| Weight (kg) | 0.82 |
| Weight (lb) | 1.8 |
| Wetted Material | Nickel, Zinc, LCP, Nitrile Rubber |
| Type | In-Line Meter Dispense Kit |
| Compatible Material | Petroleum-Based Oil, Synthetic-Based Oil |
| Display Type | Electronic |
| Valve Type | Metered |
| Recommended Environment | Indoor, Outdoor |
| Maximum Working Pressure (MPa) | 3.4 |
| Model | LD |
