Description
These gauges from Graco, Inc. are simple, dependable, economical and proven over a wide variety of applications to be accurate to ± 2% over the dial range.
They are recommended for use with grease, oil, air, water or any other medium that will not deteriorate brass.
-

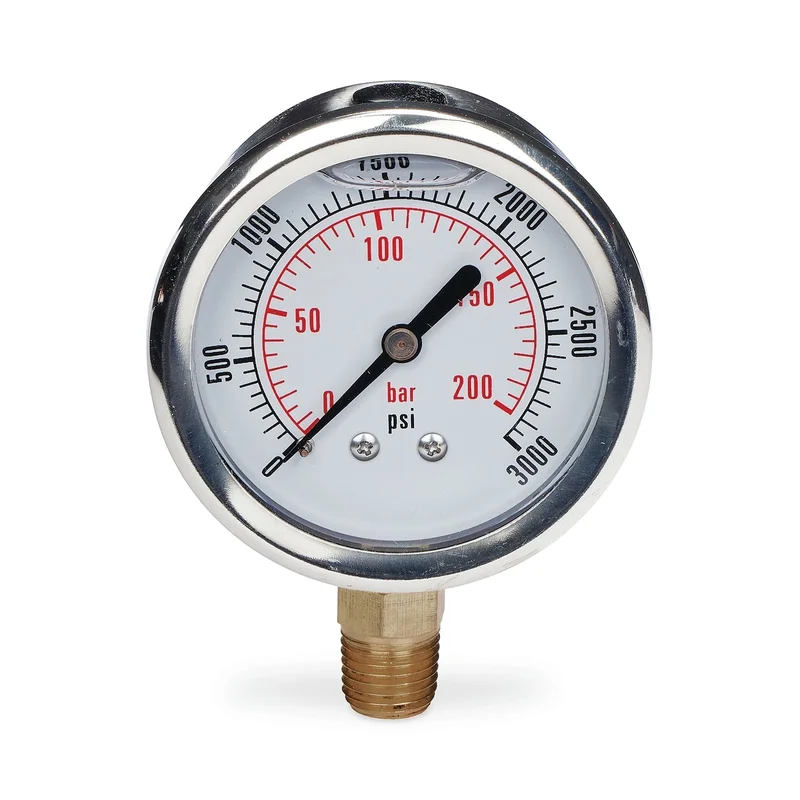

0-3000 psi Pressure Gauge, bottom-mounted
-
2.5″ Dial Diameter
- Lubriquip part number 526-200-300
UPC Product: 00633955366718 Family Code: FAMCPT Unit of Measure: EA Height: 1.45 IN |3.683 CM Length: 3.65 IN |9.271 CM Width: 2.95 IN |7.493 CM Volume: .009 FT3 |0 M3 Chargeable Weight: .46 LBS | .21 KG
Technical Specifications
| Dial Diameter (cm) | 6 |
|---|---|
| Dial Diameter (in) | 2.5 |
| Dial Diameter (mm) | 64 |
| For Use With | LubeMaster Pumps |
| Inlet Size (cm) | 0.635 |
| Inlet Size (in) | 1/4 |
| Inlet Size (mm) | 6.35 |
| Inlet Thread Type | NPT |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (psi) | 3000 |
| Overall Height (cm) | 3.25 |
| Overall Height (in) | 1.28 |
| Overall Height (mm) | 32.51 |
| Overall Width (cm) | 6.35 |
| Overall Width (in) | 2.5 |
| Overall Width (mm) | 63.5 |
| Type | Liquid-Filled |
| Maximum Working Pressure (MPa) | 20.7 |
