Description
Features

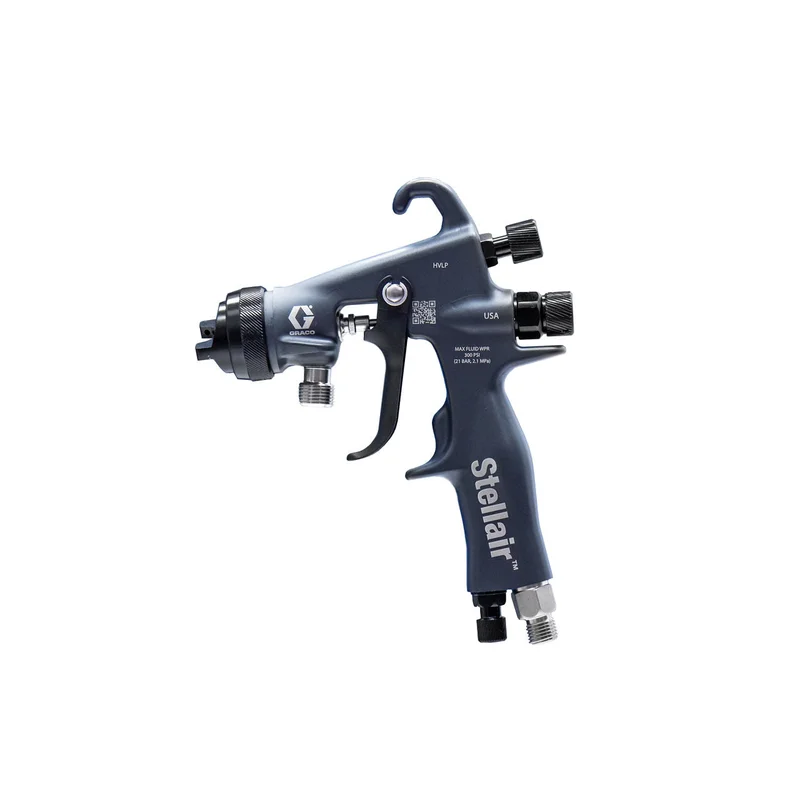

Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.
High wear packing, carbide needle and carbide nozzle tip are strengthened to effectively apply abrasive materials.
- High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.
- High solids air cap maintains high throughput while spraying ultra violet (UV) coatings and abrasive materials.
- High wear ceramic tip withstands abrasive material, increasing uptime between service intervals.
- Even balance, light weight, and easy trigger pull help reduce fatigue and muscle strain.
- Quick release trigger and quick connect retaining ring mean tool-free maintenance and service.
- Direct stainless steel fluid path means little solvent is needed to flush the gun, reducing VOC (volatile organic compound) emissions.
| Product Specifications | |
|---|---|
| UPC Product | 769946834918 |
| Division | IPD |
| Family Code | FAMCAP |
| Country of Origin | US |
| Unit of Measure | EA |
| Height | 2 IN | 5.080 CM |
| Length | 12 IN | 30.480 CM |
| Width | 7 IN | 17.780 CM |
| Volume | 0.097 FT³ | 0.003 M³ |
| Shipping Weight | 1.5 LBS | 0.680 KG |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Feed Type | Pressure Feed |
| Fluid Orifice Size (mm) | 0.022 |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (bar) | 21 |
| Maximum Fluid Pressure (psi) | 300 |
| Model | Stellair |
| Series | Manual |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Product Type | Spray Gun |
| Technology Type | HVLP |
| Needle Tip Material | High Wear |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Air Pressure (MPa) | 0.7 |
| Fluid Inlet Size (in) | 0.375 |
| Fluid Inlet Size (mm) | 9.52 |
