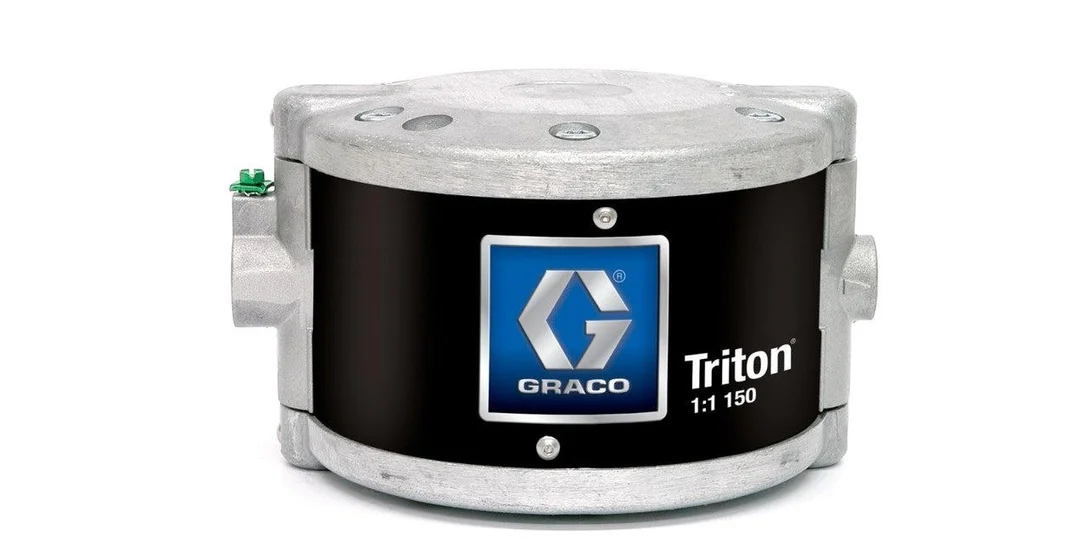

Description
Effective alternative to traditional pressure pots and standard diaphragm pumps
- Double diaphragm pump designed specifically for finishing applications
- Low pulsation output provides smooth pump changeover
- Low shear design for minimal degradation of shear sensitive materials
- Rugged aluminum and stainless steel construction handles a wide variety of fluids
| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Type | NPT |
| Application | Circulation |
| Connection Type | Threaded |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Manifold Configuration | Center Port |
| Material | Stainless Steel |
| Maximum Air Pressure (MPa) | 0.8 |
| Maximum Air Pressure (psi) | 115 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Fluid Pressure (psi) | 115 |
| Maximum Operating Temperature (°F) | 176 |
| Minimum Operating Temperature (°F) | 50 |
| Model | Triton |
| Power Source | Air |
| Pump Ratio | 1:1 |
| Series | 308 |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 14 |
| Wetted Material | Aluminum, Stainless Steel |
