Description
Features
The SD line of hose reels feature Graco durability, performance and value built into every reel.
With its durable metal spool and rigid pedestal frame, the compact SD Series is ideal for indoor and moderate outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.
- Full-Flow Swivel – Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Adjustable Arm – Easily change the arm position for your application
- Large Hose Capacity with Small Profile – Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
- Durable Finish – Baked-on enamel finish protects reel from corrosion

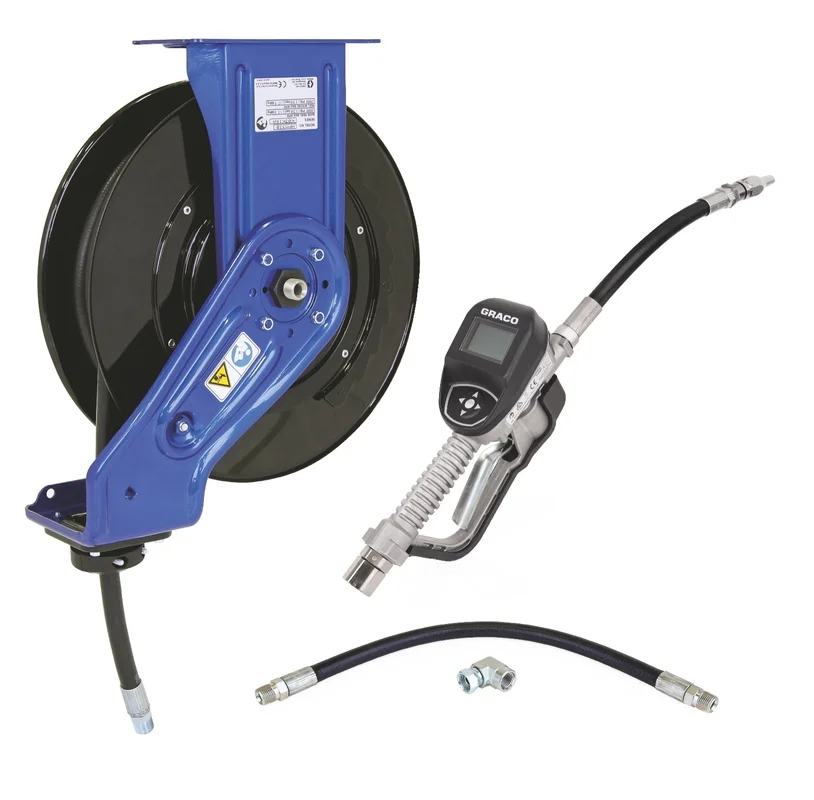

- SD Hose Reel Package – includes hose reel, hose inlet kit and meter/valve
Specifications
UPC Product: 00633955568235 Family Code: FAMSDR Unit of Measure: EA Height: 0 IN |0 CM Length: 0 IN |0 CM Width: 0 IN |0 CM Volume: 0 FT3 |0 M3 Chargeable Weight: 0 LBS | 0 KG
Technical Specifications
| Color | Metallic Blue |
|---|---|
| Hose Inside Diameter (in) | 1/2 |
| Hose Inside Diameter (mm) | 12.7 |
| Hose Length (ft) | 35 |
| Hose Length (m) | 11 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Outlet Size (in) | 1/2 |
| Outlet Size (mm) | 12.7 |
| Outlet Thread Type | NPT |
| Series | 10 |
| Application | Oil |
| Type | Spring-Rewind Reel |
| Recommended Environment | Indoor, Outdoor |
| Frame Type | Enclosed |
| Reel Thread Type | NPT |
| Inlet Thread Gender | Male |
| Outlet Thread Gender | Male |
| Recommended Fluid Type | Oil |
| Hose Reel Type | Reel Package |
| Model | SD |
