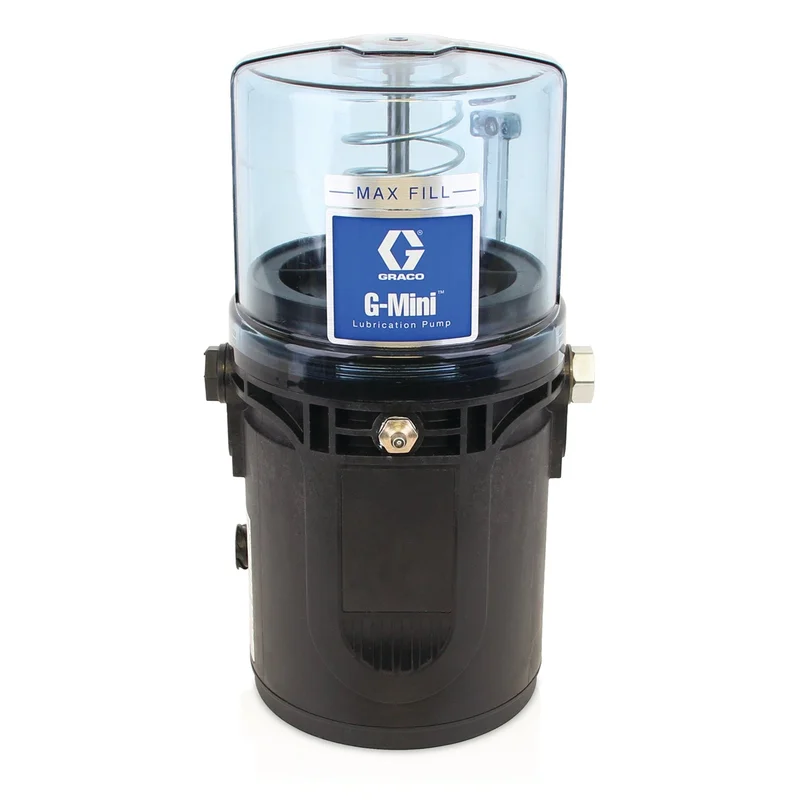

Make the most of your space, budget and machines. The new full-featured G-Mini offers reliable lubrication with a small footprint to suit more types of machine. Use it to simplify everyday maintenance, extend life cycles and optimise uptime. It’s rugged and tough, perfect for handling the daily 24/7 rigours of any job big or small. Best of all, it comes with a modest price tag – boosting your productivity and profitability.
- Follower Plate and Stir Paddle – this unique combination combats oil separation while ensuring the pump element ‘loading chamber’ is always full.
- 5-Wire CPC Power Cable – this multifunctional cable supplies power to the pump, pairs with a remote manual run button, and provides low level or cycle fault output.
- 0.5 litre reservoir option
- One Pump Element – 0.18 in3/min (3 cm3/min), 4,100 psi (280 bar)
- No controller – pair with either an external controller or PLC.
- Rugged construction – designed to withstand the harshest of environments; IP69K rated.
Specifications
UPC Product: 00755652992271 Family Code: FAMLPM Unit of Measure: EA Height: 14.5 IN |36.83 CM Length: 29.845 CM |11.75 IN Width: 11.75 IN |29.845 CM Volume: 1.159 FT3 |.033 M3 Chargeable Weight: 12.06 LBS | 5.468 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | Off-Road Equipment, On-Road Vehicles, Industrial, Wind Energy |
| Compatible Material | Grease |
| Fluid Inlet Type | 用于加注储罐的加油嘴接头, リザーバー充填用の管継ぎ手, Zerk Fitting to Fill Reservoir, Zerk fitting to fill reservoir, Raccord Zerk au réservoir de remplissage, Grasera Zerk para llenar el depósito, 저장소 채우기용 저크 피팅, Schmiernippel zum Befüllen des Schmiermittelbehälters, Smeernippel voor het vullen van het reservoir |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| Maximum NLGI Grade | #2 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Maximum Working Pressure (bar) | 280 |
| Maximum Working Pressure (psi) | 4061 |
| Minimum Operating Temperature (°C) | -15 |
| Minimum Operating Temperature (°F) | 5 |
| Model | G-Mini |
| Reservoir Size (L) | 0.5 |
| Voltage (V dc) | 12 |
| Weight (lb) | 8.8 |
| Wetted Material | Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Amorphous Polyamide, Nylon |
| Compatible Metering Device | Series Progressive |
| Control Options | External Controller |
| IP Rating | IP69K |
| Maximum Flow Rate (ci/min) | 3 |
| Maximum Voltage (V dc) | 16 |
| Minimum Voltage (V dc) | 9 |
| Number of Pump Elements | Up to 2 |
| Overall Depth (in) | 6.57 |
| Overall Height (in) | 10.9 |
| Overall Width (in) | 6.97 |
| Power Connection Type | CPC |
| Voltage (V) | 12 |
| Approvals | CE, EAC |
