Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

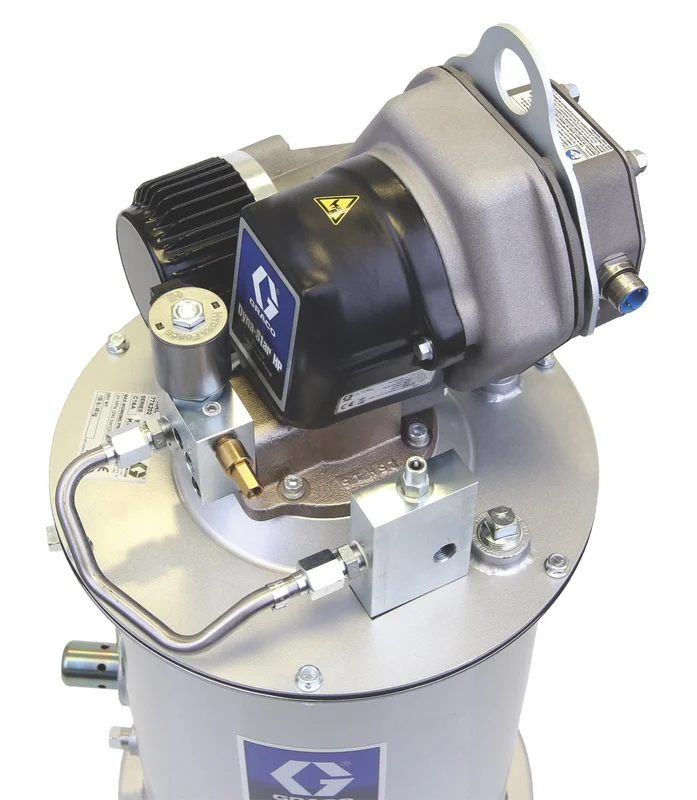

Electric pumps for heavy duty automatic lubrication and transfer systems.
- Graco Advantage Drive™ – heavy duty gear drive – lubed for life
- Auto Fill Shut Off – mechanical shut off of fill pump for clean and efficient refill
- Tube-in-tube vent and fill path – convert drum to injector system instantly
- Vent valve mounted directly to pump – no more brackets or extra hoses and pipes
- Motor control – speed and AMP control
- Cold weather performance (-40°C)
- More efficient seal replacement
- Remote Fill Manifold with Vent (with built in pressure gauge) allows you to conveniently locate the fill port where you want it
Specifications
UPC Product: 00755652364115 Family Code: FAMHPM Unit of Measure: EA Height: 27.5 IN |69.85 CM Length: 40.75 IN |103.505 CM Width: 17.5 IN |44.45 CM Volume: 11.349 FT3 |.321 M3 Chargeable Weight: 134 LBS | 60.78 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Grease |
| Fluid Outlet Size (in) | 0.375 |
| Fluid Outlet Size (mm) | 9.5250 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Includes | HP 泵 24 VDC, HP ポンプ 24 VDC, HP Pump 24 VDC, Bomba de alta presión de 24 VCC, 带泵的注油器模块, ポンプ付インジェクターモジュール, Injector Module with Pump, módulo de inyector con bomba, 套管, チューブインチューブ, Tube-in-Tube, tubo en tubo, 泄压阀, ベントバルブ, Vent Valve, válvula de ventilación, 自动加注关闭, 自動充填シャットオフ, Auto-fill Shutoff, cierre de llenado automático, 低液位, 低レベル, Low Level, nivel bajo, 60 磅储罐, 60 lb リザーバー, 60 lb Reservoir, depósito de 60 lb |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Model | Dyna-Star |
| Power Type | Pneumatic |
| Reservoir Size (lb) | 60 |
| Voltage (V dc) | 24 |
| Weight (lb) | 105 |
| Compatible Metering Device | Single Line Parallel |
| IP Rating | IP69K |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Minimum cST Grade (cST) | 40 |
| Overall Depth (cm) | 41 |
| Overall Depth (in) | 16.13 |
| Overall Depth (mm) | 410 |
| Overall Height (cm) | 77.5 |
| Overall Height (in) | 30.5 |
| Overall Height (mm) | 775 |
| Overall Width (cm) | 36.8 |
| Overall Width (in) | 14.5 |
| Overall Width (mm) | 368 |
| Power Connection Type | M23 |
| Weight (kg) | 47.6 |
| Maximum Working Pressure (MPa) | 24.1 |
