Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.

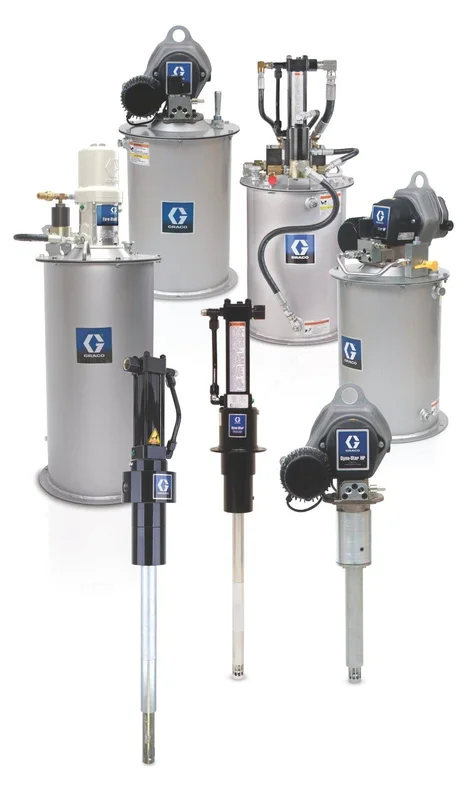

Electric pumps for heavy duty automatic lubrication and transfer systems.
- Graco Advantage Drive™ – heavy duty gear drive – lubed for life
- Tube-in-tube vent and fill path – convert drum to injector system instantly
- Motor control – speed and AMP control
- Cold weather performance (-40°C)
- More efficient seal replacement
Specifications
UPC Product: 00633955191297 Family Code: FAMHPM Unit of Measure: EA Height: 14.4 IN |36.576 CM Length: 128.016 CM |50.4 IN Width: 15.6 IN |39.624 CM Volume: .186 M3 |6.552 FT3 Chargeable Weight: 69.2 LBS | 31.39 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Oil & Grease |
| Fluid Outlet Size (in) | 0.375 |
| Fluid Outlet Size (mm) | 9.5250 |
| Fluid Outlet Thread Type | NPT |
| Includes | HF 泵, HP ポンプ, HF Pump, Bomba de alta frecuencia, ,, 400 磅储罐, 180 kg (400 lb) リザーバー, 400 lb (180 kg) Reservoir, depósito de 400 lb (180 kg) |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Model | Dyna-Star |
| Power Type | Electric |
| Reservoir Size (lb) | 400 |
| Voltage (V dc) | 24 |
| Weight (lb) | 60 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
| Compatible Metering Device | Single Line Parallel |
| IP Rating | IP69K |
| Maximum Voltage (V dc) | 32 |
| Minimum Voltage (V dc) | 18 |
| Overall Height (cm) | 112.5 |
| Overall Height (in) | 44.3 |
| Overall Height (mm) | 1125 |
| Overall Width (cm) | 27.9 |
| Overall Width (in) | 11 |
| Overall Width (mm) | 279 |
| Power Connection Type | M23 |
| Weight (kg) | 27.22 |
| Maximum Working Pressure (MPa) | 24.1 |
