Description
Features
For air powered, Off-Road Mobile Lubrication Systems.

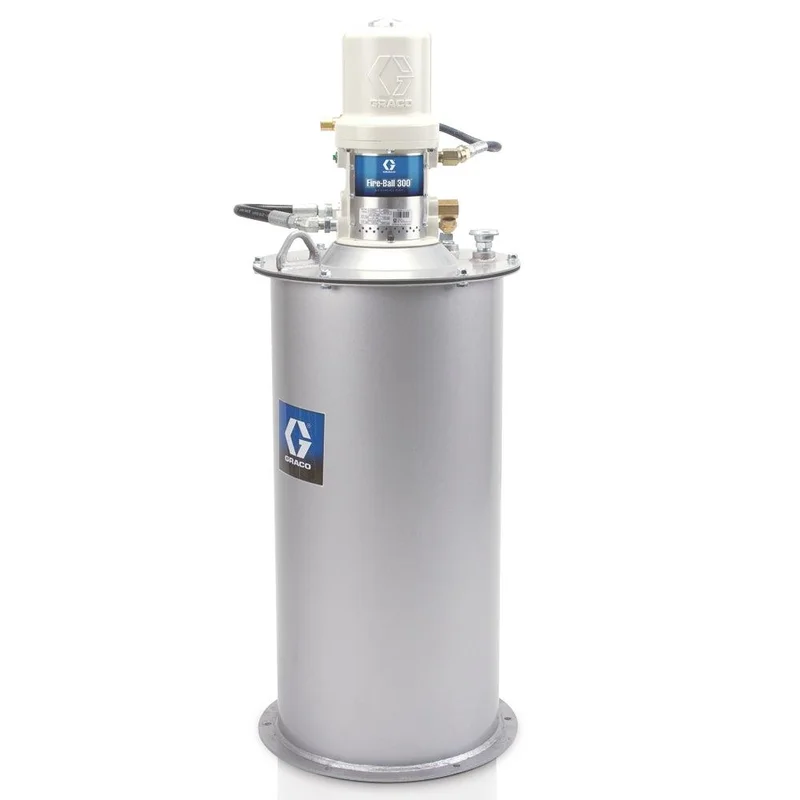

- Fireball 300, 50:1 41 kg (90 lb) pump module
Specifications
UPC Product: 00633955891883 Family Code: FAMHPM Unit of Measure: EA Height: 109.728 CM |43.2 IN Length: 18 IN |45.72 CM Width: 16.8 IN |42.672 CM Volume: 7.56 FT3 |.214 M3 Chargeable Weight: 39.92 KG | 88 LBS
Technical Specifications
| Type | Pneumatic Piston Pump |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Compatible Material | Grease |
| Fluid Outlet Size (in) | 0.5 |
| Fluid Outlet Size (mm) | 12.7000 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSM |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Model | Fire-Ball |
| Power Type | Pneumatic |
| Pump Ratio | 50:1 |
| Series | 300 |
| IP Rating | IP69K |
| Minimum cST Grade (cST) | 40 |
| Overall Height (cm) | 95.9 |
| Overall Height (in) | 37.75 |
| Overall Height (mm) | 959 |
| Overall Width (cm) | 32.4 |
| Overall Width (in) | 12.75 |
| Overall Width (mm) | 324 |
| Maximum Working Pressure (MPa) | 24.1 |
