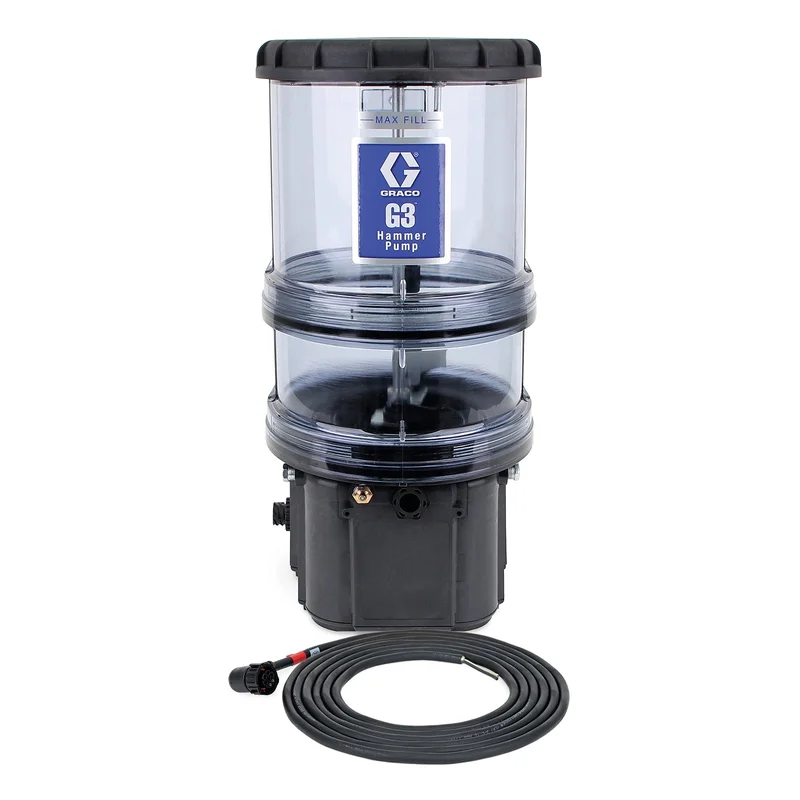

Extend the life of your hydraulic hammer/breaker tools and provide a breakthrough for your budget. The new G3 Hammer Pump offers convenient top fill access, enabling chisel paste to be quickly added to the reservoir to avoid halting operations.
Designed for harsh, high vibration environments, the G3 Hammer Pump ideally handles high shock hammer/breaker applications with ease. With precision engineered pump elements based on our industry-leading G3 platform, this pump keeps up with the work you do, increasing both productivity and your bottom line.
- Robust Cover Design – Reinforced ribs to withstand high vibration and shock applications.
- Spin-off Reservoir Cover – Quickly fill hard to pumpgrease from the top of the reservoir.
- Versatile Pump Elements – Built to withstand the harshest of greases, such as chisel paste and other greases containing additives.
- Multiple Reservoir Options – Available in both 4 liter and 8 liter capacities.
- Up to Three Pump Elements – 0.25 in3/min (4 cm3/min) per element. 5,100 psi (351.6 bar).
- Power and Low Level Options – CPC or DIN-style connectors make for easy, no-hassle installations.
Specifications
UPC Product: 769946266825 Family Code: FAMMPM Unit of Measure: EA Height: 24.5 IN |62.23 CM Length: 12.75 IN |32.385 CM Width: 11 IN |27.94 CM Volume: 1.985 FT3 |.056 M3 Chargeable Weight: 20.7 LBS | 9.385 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Application | Off-Road Equipment |
| Compatible Material | Chisel Paste, Grease |
| Fluid Outlet Size (in) | 0.25 |
| Fluid Outlet Size (mm) | 6.3500 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPSF |
| For Use With | 基于加注器的系统；递进式系列系统, Injector-Based Systems, Systèmes à injection , 주입기 기반 시스템, 프로그레시브 시리즈 시스템, Einleitungssysteme, Series Progressive Systems, systèmes série progressif, Progressivsysteme |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 351.6 |
| Maximum Working Pressure (kPa) | 35160 |
| Maximum Working Pressure (psi) | 5100 |
| Model | G3 |
| Power Type | Electric |
| Reservoir Size (gal) | 2.11 |
| Reservoir Size (L) | 8 |
| Series | Standard |
| Voltage (V dc) | 24 |
| Weight (lb) | 13.3 |
| Wetted Material | Nylon, Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
| Compatible Metering Device | Series Progressive, Single Line Parallel |
| Control Options | Standard |
| IP Rating | IP69K |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 32 |
| Minimum Voltage (V dc) | 18 |
| Number of Pump Elements | Up to 3 |
| Overall Depth (cm) | 25.4 |
| Overall Depth (in) | 10 |
| Overall Depth (mm) | 254 |
| Overall Width (cm) | 23.5 |
| Overall Width (in) | 9.25 |
| Overall Width (mm) | 235 |
| Power Connection Type | CPC |
| Voltage (V) | 24 VDC |
| Weight (kg) | 6 |
| Maximum Working Pressure (MPa) | 35.1 |
