Description
Features

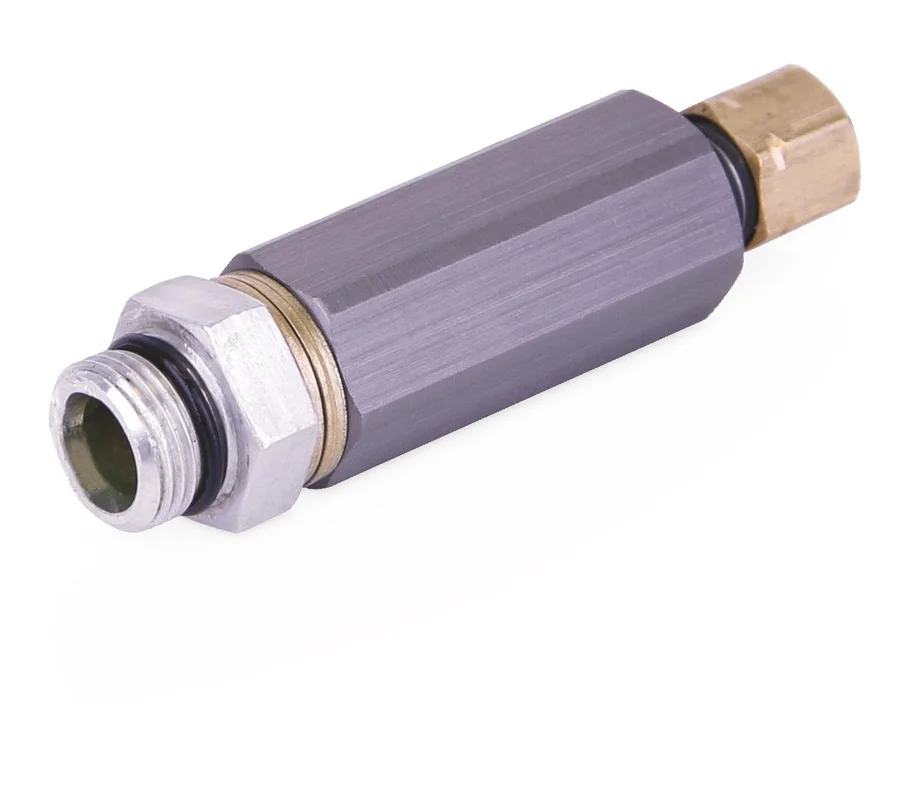

Designed for frequent, medium-pressure metering and includes system pressure monitoring.
For use with Grease Jockey Lubrication Solutions.
- Two piece compression fitting included for fast, easy installation.
- Bundled system tubing available for easy installation.
- Threaded outlet allows for manifold mounting.
- Adjustable output volume.
- Grease Jockey Injector Size #3
- 3 Output Spacers
Specifications
UPC Product: 00755652411925 Family Code: FAMGJP Unit of Measure: EA Height: .95 IN |2.413 CM Length: 3 IN |7.62 CM Width: 1.4 IN |3.556 CM Volume: .002 FT3 |0 M3 Chargeable Weight: .08 LBS | .03 KG
Technical Specifications
| Adjustable | Adjustable |
|---|---|
| Compatible Material | Grease |
| For Use With | Grease Jockey Automatic Lubrication Systems, Sistemas de lubricación automática Grease Jockey |
| Maximum NLGI Grade | #2 |
| Maximum Working Pressure (bar) | 137.9 |
| Maximum Working Pressure (kPa) | 13790 |
| Maximum Working Pressure (psi) | 2000 |
| Type | Grease Injector |
| Application | On-Road Vehicles |
| Maximum Working Pressure (MPa) | 13.8 |
| Model | Grease Jockey |
