Description

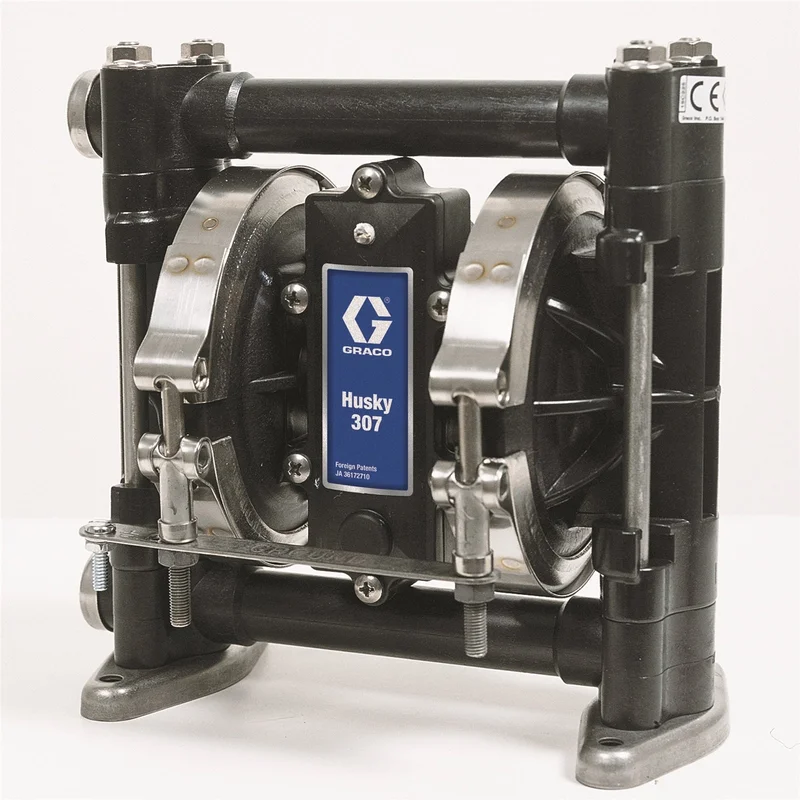

The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Specifications
UPC Product: 00633955656260 Family Code: FAMAOD Unit of Measure: EA Height: 6 IN |15.24 CM Length: 8.4 IN |21.336 CM Width: 8.4 IN |21.336 CM Volume: .245 FT3 |.007 M3 Chargeable Weight: 6 LBS | 2.72 KG
Technical Specifications
| Type | Pneumatic Diaphragm Pump |
|---|---|
| Air Exhaust Port Size (in) | 3/8 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | 316 Stainless Steel |
| Center Section Material | Polypropylene |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water – Wastewater Treatment, Water, Ink |
| Diaphragm Material | PTFE/EPDM 2-Piece |
| Fluid Inlet Size (cm) | 0.9525 |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Size (mm) | 9.525 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 0.9525 |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 9.525 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Material | Acetal |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Acetal |
| Maximum Air Consumption (SCFM) | 5.5 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 330 |
| Maximum Flow Rate (GPM) | 6.5 |
| Maximum Flow Rate (L/min) | 24.6 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Solid Size (cm) | 0.1588 |
| Maximum Solid Size (in) | 0.0625 |
| Maximum Solid Size (mm) | 1.5875 |
| Minimum Operating Temperature (°C) | 4 |
| Minimum Operating Temperature (°F) | 40 |
| Model | Husky |
| Overall Height (in) | 8.13 |
| Power Source | Air |
| Seat Material | Stainless Steel |
| Series | 307 |
| Standards Met | ATEX, CE |
| Weight (lb) | 5.25 |
| Wetted Material | Acetal, Polypropylene, Stainless Steel, PTFE/EPDM |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Air Pressure (MPa) | 0.7 |
| Connection Type | Threaded |
| diaphragm_compatible_material | PTFE |
