Description
Features

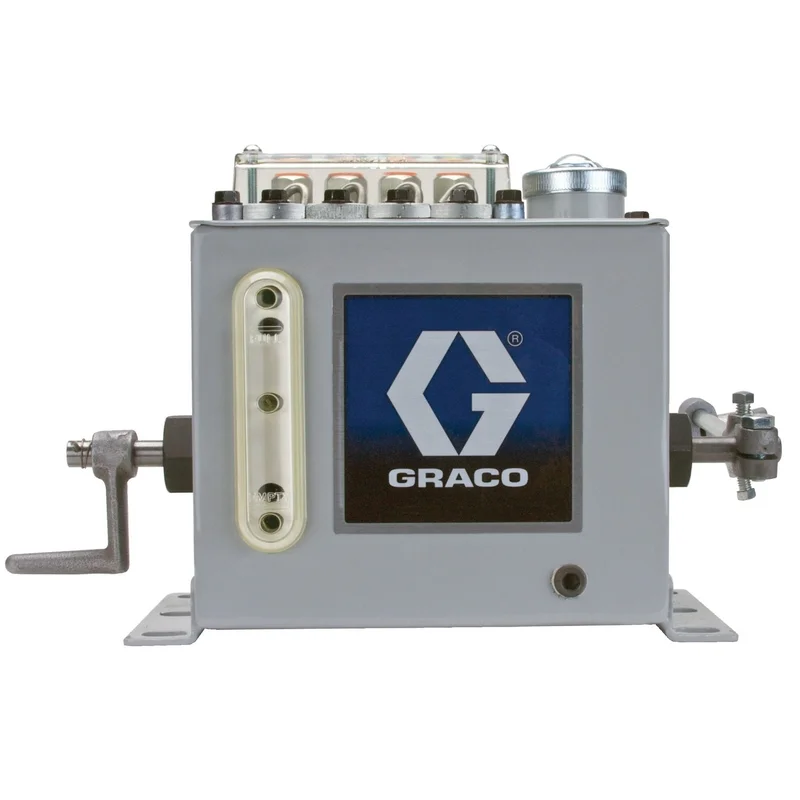

Manzel Model 25 Force Feed Lubricators are economical, general purpose units of double plunger design for precise metering of lubricants (either mineral oil base or synthetics). All working parts are totally enclosed—away from dust, water and impurities—and self-lubricated at all times by the lubricant in the reservoir.
They provide lubrication to cylinder walls, bearings and other moving parts of equipment such as sugar mills, steam engines, presses and general machinery.
- General-Purpose Lubrication: automatic, precision metering for all types of machinery.
- Pressures: Up to 1000 psi (69 bar)
- Type Pumping Unit: Clear-Vue. Sight Feed Chamber functions at atmospheric pressure. Shows amount of lubricant being pumped.
- Unitized Construction: Contains complete feed regulating mechanism. Equipped with inlet strainer.
- Unitized Construction: Contains complete feed regulating mechanism. Equipped with inlet strainer.
- Displacement, Output: 1/4 to 12 drops per stroke with 5/16 in plunger; 1/6 to 6 drops per stroke with 3/16 in plunger.
- Reservoirs: Single Compartment, sheet metal construction.
- Feed Regulator: External screw-type precisely adjustable while idle or in operation.
- Lubriquip part number 225-001-970
Specifications
UPC Product: 00633955349148 Family Code: FAMMAN Unit of Measure: EA Height: 27.432 CM |10.8 IN Length: 60.96 CM |24 IN Width: 10.8 IN |27.432 CM Volume: 1.62 FT3 |.046 M3 Chargeable Weight: 32 LBS | 14.51 KG
Technical Specifications
| Type | Box Lubricator |
|---|---|
| Compatible Material | Oil |
| Series | Model 25 |
| Model | Manzel |
