Description
Features

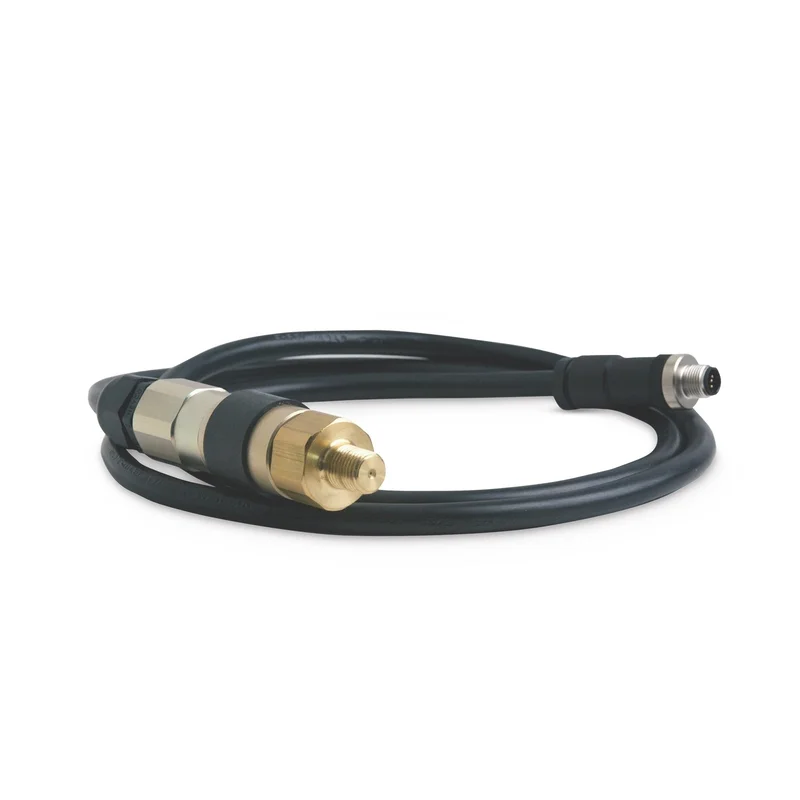

Turns off your pump or controller and activates venting once the lube system reaches the desired pressure level.
Durable design allows operation in harsh environment.
- Easy to visually adjust line pressure and reset pressure to ensure your lube system has vented properly
- LED lights visually display pressure switch functions
- Modern 4-pin M12 micro-connector easily connects to the G3 and other controllers; 124595 4-pin M12 micro-connector sold separately
- Moisture resistant and factory set to ensure accuracy for long life and reliability
- Sends an alarm signal to alert either a high or low pressure condition
- Available for hydraulic pressures from 400 to 4700 psi (28 to 324 bar)
- 1/4 in NPT thread allows quick connection to injector systems
- Lubriquip part number 542-210-120
Specifications
UPC Product: 633955286559 Family Code: FAMCPT Unit of Measure: EA Height: 2.9 IN |7.366 CM Length: 5.2 IN |13.208 CM Width: 6.75 IN |17.145 CM Volume: .059 FT3 |.002 M3 Chargeable Weight: .91 LBS | .41 KG
Technical Specifications
| Adjustable | Adjustable |
|---|---|
| Inlet Size (cm) | 0.635 |
| Inlet Size (in) | 0.25 |
| Inlet Size (mm) | 6.35 |
| Inlet Thread Type | NPT |
| Maximum Operating Pressure (psi) | 4700 |
| Power Connection Type | NEMA-4 |
| Type | Pressure Switch |
| Application | On-Road Vehicles, Off-Road Equipment |
| Model | Trabon |
