Description
Features

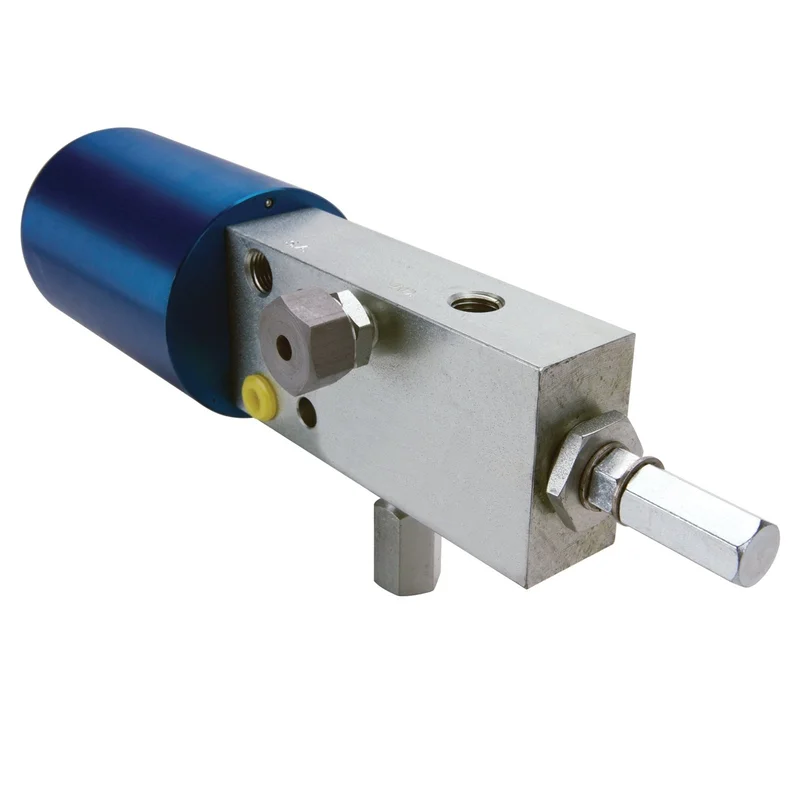

MSA Series products are used together with main lubrication supply lines where the pump is fed directly with no additional reservoir required. No reservoir makes the MSA Series ideal for locations that are difficult to reach or undesirable to enter. Use the MSA-10 for standard applications.
- Ideal for applications where space is a premium
- Handles high pressure lubricant feed of direct line intake
- Used with or without a reservoir for the ultimate flexibility
- Lubriquip part number 140-000-111
Specifications
UPC Product: 00633955348707 Family Code: FAMMPM Unit of Measure: EA Height: 5.4 IN |13.716 CM Length: 17.75 IN |45.085 CM Width: 5.4 IN |13.716 CM Volume: .3 FT3 |.008 M3 Chargeable Weight: 6.5 LBS | 2.95 KG
Technical Specifications
| Type | Pneumatic Piston Pump |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPSF |
| Application | In-Plant Machinery |
| Compatible Material | Oil, Grease |
| Includes | 维修零配件包, 交換部品キット, Repair Parts Kit, Repair Parts Kit, Kit de pièces de rechange, Kit de piezas de reparación, 수리 부품 키트, Reparatur-Teilesatz, Set met reparatieonderdelen, Kit di riparazione |
| Material | Steel |
| Maximum Air Inlet Pressure (bar) | 10.34 |
| Maximum Air Inlet Pressure (kPa) | 1034 |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Cycle Rate (CPM) | 60 |
| Maximum Fluid Output Pressure (psi) | 1450 |
| Maximum Working Pressure (bar) | 206.8 |
| Maximum Working Pressure (kPa) | 20680 |
| Maximum Working Pressure (psi) | 3000 |
| Power Type | Pneumatic |
| Maximum Working Pressure (MPa) | 20.7 |
| Minimum Air Inlet Pressure (psi) | 40 |
| maximum_fluid_output_pressure_bar | 100 |
