Description
Features

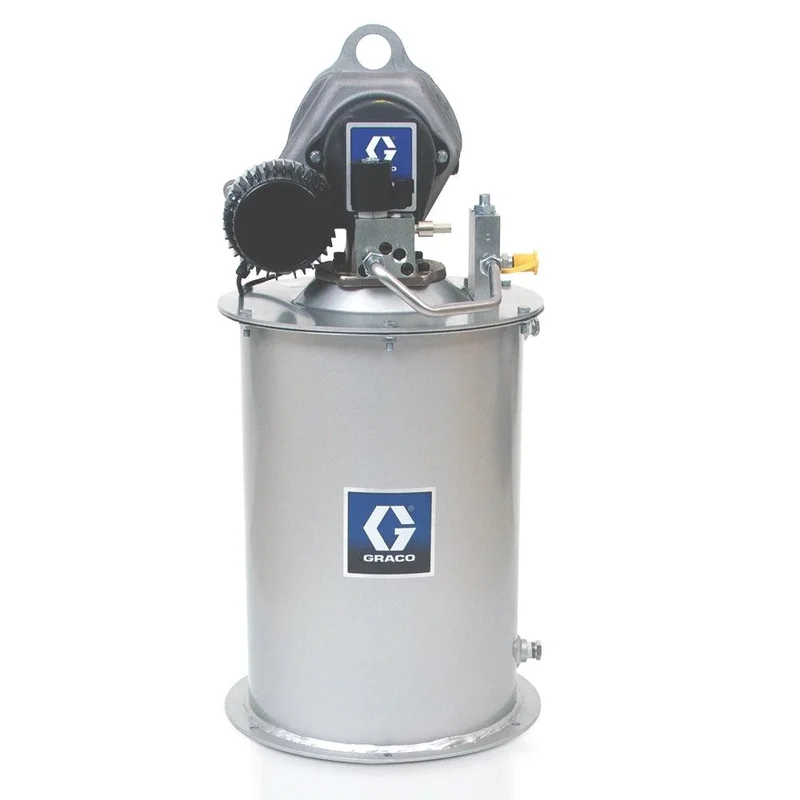

The Dyna-Star HP and HF 24VDC Electric Lubrication Pumps complement our Dyna-Star 10:1 Hydraulic and Fire-Ball 300 50:1 Pneumatic pump offering. Now you have three power source options for automatic lubrication systems and transfer applications. Heavy-duty construction and mining equipment rely on fresh lubricant to flush contaminants from critical pivot points. An automatic lubrication system from Graco provides continuous lube replenishment, reducing expensive component failures to keep your equipment working.
Electric pumps for heavy duty automatic lubrication and transfer systems.
- Auto Fill Shut Off – mechanical shut off of fill pump for clean and efficient refill
- Graco Advantage Drive™ – heavy duty gear drive-lubed for life
- Tube-in-tube vent and fill path – convert drum to injector system instantly
- Vent valve mounted directly to pump – no more brackets or extra hoses and pipes
- Motor control – speed and AMP control
- Cold weather performance (-40º C)
- More efficient seal replacement
Specifications
UPC Product: 00633955270244 Family Code: FAMHPM Unit of Measure: EA Height: 0 CM |0 IN Length: 0 IN |0 CM Width: 0 IN |0 CM Volume: 0 M3 |0 FT3 Chargeable Weight: 0 LBS | 0 KG
Technical Specifications
| Type | Electric Piston Pump |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Size (mm) | 6.35 |
| Air Inlet Thread Type | NPT |
| Application | In-Plant Machinery, Off-Road Equipment |
| Compatible Material | Grease |
| Fluid Outlet Size (in) | 0.375 |
| Fluid Outlet Size (mm) | 9.5250 |
| Fluid Outlet Thread Type | NPT |
| Includes | HF 泵 24 VDC, HF ポンプ 24 VDC, HF Pump 24 VDC, HF Pump 24 VDC, Pompe HF de 24 V CC , Bomba de alta frecuencia, 24 VCC, 24 V DC HF Pumpe und Abdeckung für 400 Pfund Behälter, HF-pomp 24 VDC, 400 磅储罐的盖板, 400 ポンドリザーバー用カバー, Cover for 400 pound reservoir, Cover for 180 kg (400 pound) reservoir, couvercle pour réservoir de 400 livres, cubierta para depósito de 400 lb, deksel voor reservoir van 400 pond |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Power Type | Pneumatic |
| Reservoir Size (lb) | 120 |
| Voltage (V dc) | 24 |
| Weight (lb) | 55 |
| Compatible Metering Device | Single Line Parallel |
| IP Rating | IP69K |
| Minimum cST Grade (cST) | 40 |
| Overall Height (cm) | 92.7 |
| Overall Height (in) | 36.5 |
| Overall Height (mm) | 927 |
| Overall Width (cm) | 27.9 |
| Overall Width (in) | 11 |
| Overall Width (mm) | 279 |
| Power Connection Type | M23 |
| Weight (kg) | 24.95 |
| Maximum Working Pressure (MPa) | 24.1 |
