Description
Features

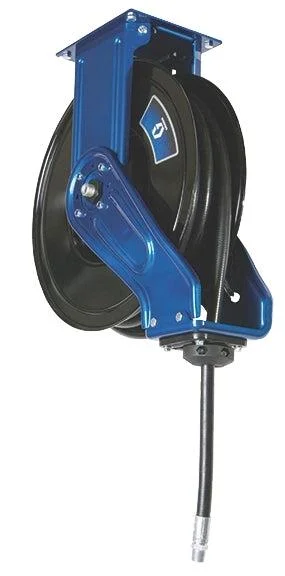

The high-performance and heavy-duty XD10 and XD20 Series Hose Reels feature high-strength dual pedestals for reliable performance in extreme applications. The compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, air, water, grease, antifreeze and windshield washer fluid.
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Spring Adjustment – Increase or decrease spring tension while reel is pressurized with fluid
- Full-Flow Swivel – Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm – Easily change the arm position for your application, order with arm (HS models) or without (HN models)
- Durable Finish – Baked-on enamel finish protects reel from corrosion
- Large Hose Capacity with Small Profile – Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications
Specifications
UPC Product: 00633955548770 Family Code: FAMXD1 Unit of Measure: EA Height: 0 IN |0 CM Length: 0 IN |0 CM Width: 0 IN |0 CM Volume: 0 FT3 |0 M3 Chargeable Weight: 65 LBS | 29.48 KG
Technical Specifications
| Color | White |
|---|---|
| Dry Weight (lb) | 64 |
| Hose Inside Diameter (in) | 3/8 |
| Hose Inside Diameter (mm) | 9.525 |
| Hose Length (ft) | 50 |
| Hose Length (m) | 15 |
| Inlet Size (in) | 3/8 |
| Inlet Size (mm) | 9.525 |
| Inlet Thread Type | NPSM |
| Maximum Working Pressure (psi) | 4800 |
| Outlet Size (in) | 1/4 |
| Outlet Size (mm) | 6.35 |
| Overall Height (in) | 25.2 |
| Overall Height (mm) | 640 |
| Overall Length (in) | 21 |
| Overall Length (mm) | 533 |
| Overall Width (in) | 7.5 |
| Overall Width (mm) | 191 |
| Series | 20 |
| Application | Grease |
| Type | Spring-Rewind Reel |
| Recommended Environment | Indoor, Outdoor |
| Frame Type | Box Frame |
| Reel Thread Type | NPT |
| Inlet Thread Gender | Male |
| Outlet Thread Gender | Male |
| Recommended Fluid Type | Grease, Engrase |
| Hose Reel Type | Reel with Hose |
| Model | XD |
| includes_hose | Yes |
