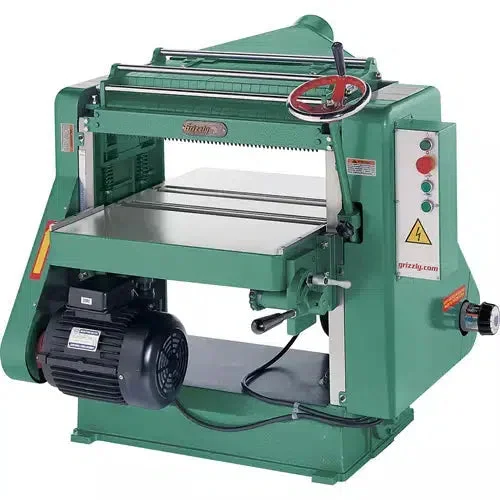

G5851Z 24″ 5 HP Planer

Durability, dependability, and capacity are the hallmarks of this massive planer.

Are you needing to plane wide, solid wood panels? No problem! The 5 HP, single-phase motor of the G5851Z 24″ Planer powers through the toughest hardwoods with ease.

The G5851Z features a 24” planing capacity and four high-speed steel knives (HSS) on the 3-1/8” cutterhead.

The HSS knives have been heat treated for hardness and wear resistance, which keeps a sharp edge longer than other carbon steels.

The built-in chip deflector leads directly into the dust hood with a 5” dust port to help ensure the work area stays as clear as possible.

The large, conveniently located handwheel facilitates bed adjustment.

The G5851Z manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.

Parts for the planer may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Main motor: 5 HP, 220V, single-phase, 25A
• Feed motor: 2 HP, 14A
• Maximum stock width: 24″
• Maximum stock thickness: 7″
• Minimum stock thickness: 1/4″
• Minimum stock length: 8″
• Maximum cutting depth planing full width: 1/16″
• Maximum cutting depth planing 6″ wide board: 1/8″
• Cutterhead diameter: 3-1/8″
• Cutterhead type: 4-knife
• Knife size and type: 24″ x 1″ x 1/8″, HSS, single-sided
• Cutterhead speed: 5200 RPM
• Feed rate: Variable, 17–26 FPM
• Table size with extensions: 24-1/8″ x 31-1/8″
• Dust port size: 5″
• Footprint: 20-1/2″ x 24-1/2″
• Overall dimensions: 42″ W x 40-1/2″ D x 37″ H
• Approximate shipping weight: 1126 lbs.

FEATURES:

• Board return rollers
• Precision-ground cast-iron table
• Grease fittings for cutterhead ball bearings
• Heavy-duty cast-iron construction throughout
• Magnetic switch with thermal overload protection
• Lever-adjustable bed rollers
• Handwheel table height adjustment
• Segmented chip breaker and infeed roller
• Finely finished steel outfeed roller
• Inch and metric scale increments
• Dust covers protect vertical support columns and leadscrews
