Description

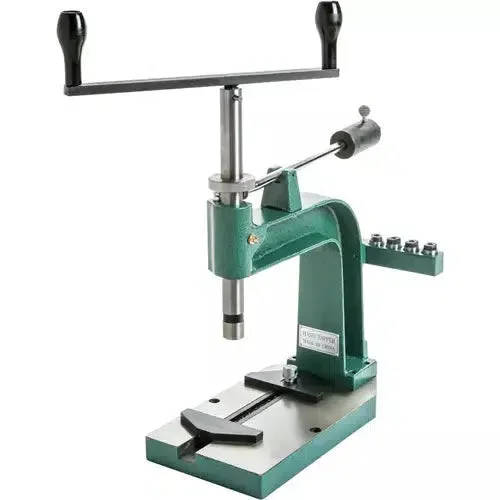

Our G8748 Hand Tapping Machine provides stability, precision and sensitivity to the hand tapping process. The cast iron construction of the base and over-arm gives a rigid setup that resists tool breakage. Precision ground surfaces on the base and hardened spindle means perpendicular perfection; no more off-axis tapped holes. The counter-balanced spindle allows far more sensitivity than an ordinary tap handle.
Other features include:quick setting work holder, 9 tap holders that snap-lock into spindle, rack for tap holders, adjustable height collar and off-set handles for quick return. Can be bolted down to use as a tapping station! Collet sizes include:#6, #8, #10, 1/4″, 5/16″, 7/16″, 3/8″, 1/2″ and 5/8″ (sized by standard shank sizes).
Specifications:
- Overall dimensions:22-1/2″ x 12-1/2″ x 14″
- Throat capacity:7-3/8″
- Height capacity:7-7/8″
- Table size:6-1/2″ x 12-1/2″
- Work holder maximum opening:6″
- Approx. Shipping weight:45 lbs.
