Description

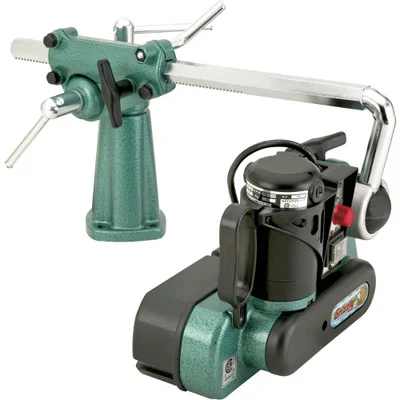

Grizzly Industrial 1/8 HP Power Feeder (G4173) is your solution to increased production efficiency during ripping or milling operations. Featuring a 1/8 HP motor and synthetic rubber rollers, this power feeder is designed to handle various stock sizes with ease. The variable-speed motor provides smooth feeding at speeds between 6.5 and 39 FPM.
Built with convenience in mind, the feeder offers forward and reverse feed rotation, X-, Y-, and Z-axis adjustments, and spring-tensioned rollers. The compact yet durable design ensures consistent performance while enhancing safety and accuracy in your shop.
- Specifications and Dimensions
- Motor: 1/8 HP, 120V, single-phase, 1.2A
- Feed speed: Variable, 6.5–39 FPM
- Maximum height of rollers: 6″
- Horizontal travel: 10-1/4″
- Rollers: (3) synthetic rubber, 1-3/16″ wide x 3″ dia.
- Rotation: Forward/reverse
- Roller suspension: 5/16″
- Swing: 360°
- Minimum workpiece length: 5″
- Approximate shipping weight: 27 lbs.
- Key Features and Benefits
- Variable speed for customizable feeding control
- Forward/reverse feed for flexible operation
- Heavy-duty gear reduction with hardened gears
- Spring-tensioned rollers ensure smooth material feeding
- Universal positioning with secure handle locks
