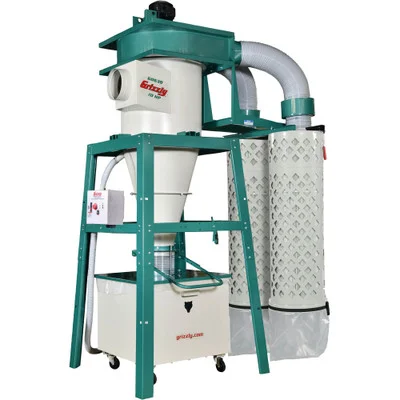

Grizzly Industrial 10 HP 3-Phase Cyclone Dust Collector (G0638) delivers powerful performance with 4029 CFM airflow, making it an essential solution for large woodworking shops running multiple machines simultaneously. Designed to handle extensive duct systems, it features a ramped air intake for efficient dust collection and minimal fine dust escape.
Equipped with a 10 HP motor and advanced filtration system, this cyclone dust collector removes 99.9% of particles between 0.2-2 microns. Noise-reducing exhaust mufflers keep the sound level below 90 dB, making it an excellent choice for continuous daily use.
- Specifications and Dimensions
- Motor: 10 HP, 220V/440V (prewired 240V), 3-phase, 30A/15A
- Minimum circuit size: 50A @ 220V, 20A @ 440V
- Airflow capacity: 4029 CFM @ 2.51″ SP
- Maximum static pressure: 16.8″
- Filter surface area: 398 sq. ft.
- Impeller size: 18-1/2″ steel radial fin
- Collection drum: 115-gallon steel with casters
- Sound level: 87-90 dB
- Overall dimensions: 76-3/4″ L x 60-1/2″ W x 139-3/8″ H
- Approx. shipping weight: 937 lbs.
- Key Features and Benefits
- Powerful 10 HP motor for efficient dust collection in large shops
- Steel collection drum with 115-gallon capacity for easy disposal
- 99.9% filtration efficiency captures particles between 0.2-2 microns
- Noise-reducing mufflers keep sound level under 90 dB
