Description

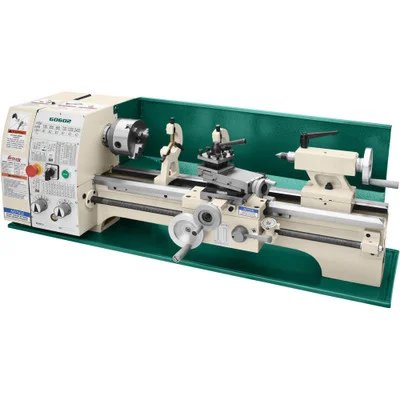

Grizzly Industrial 10″ x 22″ Benchtop Metalworking Lathe Machine (G0602) offers powerful and precise performance for garage or workshop setups. Equipped with a 1 HP motor and six spindle speeds ranging from 150 to 2400 RPM, this lathe is designed to handle a variety of metalworking tasks with ease.
With a 22-inch distance between centers and a 25mm spindle bore, this lathe accommodates a range of workpiece sizes. The lathe includes essential accessories such as a 5-inch 3-jaw chuck, a 6.5-inch 4-jaw chuck, an 8-inch faceplate, and a 4-way tool post, providing everything you need to get started.
- Specifications and Dimensions
- Motor: 1 HP, 110V, single-phase, 13.6A
- Swing over bed: 9-1/2″
- Swing over cross slide: 6-1/8″
- Swing over saddle: 6-1/8″
- Distance between centers: 22″
- Bed width: 6-1/8″
- Spindle bore: 25mm
- Spindle speeds: 6, 150–2400 RPM
- Spindle type: Threaded, 1-3/4″ x 8 TPI
- Spindle taper: MT#4
- Tailstock taper: MT#3
- Tailstock quill travel: 2-1/2″
- Cross slide travel: 6-1/2″
- Compound travel: 3-1/2″
- Maximum tool bit size: 1/2″
- Leadscrew: 3/4″ x 12 TPI
- Longitudinal feeds: (9) 0.0025, 0.0140 in./rev.
- Inch thread range: (31) 8–72 TPI
- Metric thread range: (26) 0.25–3.50mm
- Footprint: 12-1/2″ x 47-1/2″
- Overall dimensions: 46″ W x 22″ D x 16-5/8″ H
- Approximate shipping weight: 432 lbs.
- Key Features and Benefits
- Powerful 1 HP motor with six spindle speeds (150–2400 RPM)
- Precision-ground V-ways for accurate machining
- Full-featured carriage and apron assemblies for consistent results
- Quick-locking tailstock for easy setup adjustments
- Spindle reversing switch for added versatility
- Includes
- 5″ 3-Jaw scroll chuck with two sets of jaws
- 6-1/2″ 4-Jaw independent chuck with reversible jaws
- 8″ Faceplate
- 4-Way turret tool post
- MT#3 and MT#4 dead centers
- Set of change gears
- Follow rest and steady rest
- Bottle for oil and toolbox with service tools
