Description

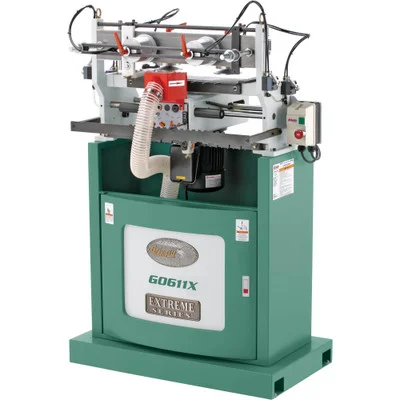

Grizzly Industrial 16-1/2″ Extreme Series Dovetail Machine (G0611X) is designed for precision and efficiency, making it easy to produce strong, attractive dovetail joints. Equipped with a 1 HP motor and operating at a spindle speed of 18,500 RPM, this machine handles projects with speed and accuracy.
Built with durability and usability in mind, this dovetail machine features a precision-milled cast-iron table, hardened chrome steel slideways, and a cast aluminum carriage. The micro-adjustable spindle head ensures perfect dovetail fit, while the quick air-cylinder clamps provide fast and secure board placement.
- Specifications and Dimensions
- Motor: 1 HP, 110V/220V (prewired 220V), single-phase, 10A/5A
- Minimum circuit size: 15A @ 120V, 15A @ 240V
- Number of spindles: 1
- Spindle speed: 18,500 RPM
- Dovetail bit: 10° angle x 5/8″ long
- Dovetail shank: 12mm
- Maximum dovetail height: 3/4″
- Minimum dovetail height: 3/16″
- Maximum thickness: 2-3/8″
- Minimum thickness: 13/32″
- Maximum stock size: 59″ long x 16-1/2″ wide
- Minimum stock size: 7-7/8″ long x 2-3/8″ wide
- Table size: 24″ x 7-3/4″
- Floor to table height: 46-7/16″
- Overall size: 38-5/8″ W x 26-1/2″ D x 56-7/8″ H
- Approximate shipping weight: 539 lbs.
- Key Features and Benefits
- Precision-milled cast-iron table and frame for stability and accuracy
- Four-way dovetail template supports various joint sizes
- Micro-adjustable spindle head ensures perfect dovetail fit
- Quick air-cylinder clamps for fast and secure board placement
