Description

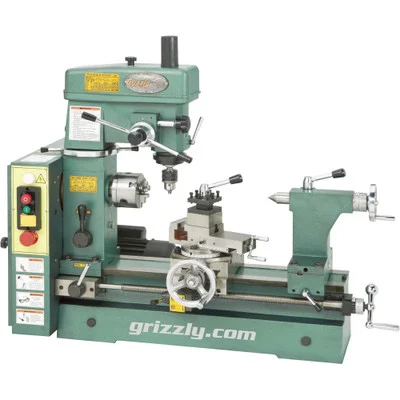

Grizzly Industrial 19-3/16″ 3/4 HP Combo Lathe/Mill (G4015Z) delivers precision and versatility in a compact footprint. With a 3/4 HP motor, it handles a variety of metalworking tasks efficiently. The lathe boasts a swing over bed of 16-1/2″, 19-3/16″ between centers, and a range of speeds from 185 to 1455 RPM, ensuring accuracy for detailed operations.
The mill section features a swing of 12″ and adjustable head with coarse and fine downfeed, providing flexibility for various milling tasks. This machine is ideal for both professionals and hobbyists seeking a compact, multi-functional tool.
- Specifications and Dimensions
- Swing over bed: 16-1/2″
- Swing over saddle: 11-1/2″
- Distance between centers: 19-3/16″
- Spindle speeds (lathe): 7, 185–1455 RPM
- Spindle speeds (mill): 14, 117–1300 RPM
- Spindle bore: 0.787″; 20mm
- Spindle taper: MT#3
- Table dimensions: 6″ W x 7-1/4″ L x 1-1/2″ H
- Motor: 3/4 HP, 110V, single-phase 8.7A
- Dimensions: 42″ W x 23″ D x 35″ H
- Approx. shipping weight: 475 lbs.
- Key Features and Benefits
- Cross slide doubles as a mill table for enhanced workspace efficiency
- Adjustable milling head with coarse and fine spindle downfeed
- Cuts inch and metric threads with precision
- Compact size suitable for small workshops or garages
- Durable construction ensures long-lasting performance
