Description

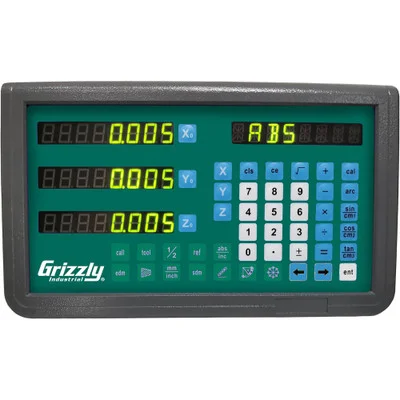

Grizzly Industrial 2-Axis Mill DRO System features reliable linear optical scales for accuracy and an intuitive DRO readout with advanced functionality, including pitch circle diameter (PCD), inclined machining, and line hole positioning capabilities.
The DRO units are built with sealed aluminum housings and solvent-resistant polyester films to ensure durability in demanding environments. Scales are equipped with smooth-sliding mechanisms using P5-grade bearings and high-resolution measurements for seamless operation.
- Specifications and Dimensions
- T32997: Scale travel lengths: 5-15/16″, 13-13/16″, Accuracy: ±6μm
- T32998: Scale travel lengths: 5-15/16″, 19-11/16″, Accuracy: ±6μm
- T33003: Scale travel lengths: 7-7/8″ and 17-3/4″, Accuracy: ±6μm
- T33004: Scale travel lengths: 7-7/8″, 19-11/16″, Accuracy: ±6μm, ±10μm
- T33006: Scale travel lengths: 7-7/8″, 21-11/16″, Accuracy: ±6μm, ±10μm
- T33007: Scale travel lengths: 7-7/8″, 23-5/8″, Accuracy: ±6μm, ±10μm
- T33010: Scale travel lengths: 9-7/8″, 23-5/8″, Accuracy: ±6μm, ±10μm
- T33014: Scale travel lengths: 11-13/16″, 29-9/16″, Accuracy: ±6μm, ±10μm
- T33016: Scale travel lengths: 13-13/16″, 29-9/16″, Accuracy: ±6μm, ±10μm
- T33019: Scale travel lengths: 15-3/4″, 31-1/2″, Accuracy: ±6μm, ±10μm
- Supply voltage: DC 5V
- Resolution: 5μm
- Optical period: 20μm
- Optical measurement: Transmissive infrared
- Repeatability: 2μm
- Seal protection: IP53
- Key Features and Benefits
- Advanced readout functions: PCD, LHOLE, INCL, radius calculation, and more
- Durable, sealed aluminum casing with solvent-resistant polyester film
- High-precision scales with smooth sliding motion using P5-grade bearings
