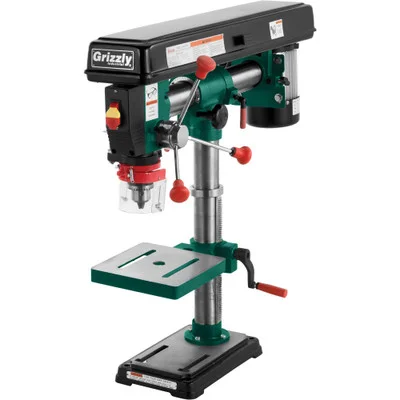

Grizzly Industrial 34″ Benchtop Radial Drill Press (G7945) is designed to deliver precision, power, and versatility for all your drilling tasks. With a rack-and-pinion table adjustment, 360° rotation, and 90° tilt capabilities, this drill press adapts effortlessly to various projects.
Perfect for hobbyists and professionals, the Grizzly Industrial 34″ Benchtop Radial Drill Press features a powerful 1/2 HP motor with adjustable speeds ranging from 550 to 3000 RPM. Its radial design allows for angle drilling, making it a versatile tool for any workshop.
- Specifications and Dimensions
- Motor: 1/2 HP, single-phase, 120V, 4.7A
- Swing: 34″
- Spindle taper: JT-33
- Spindle travel: 3-1/4″
- Spindle speeds: 5, 550–3000 RPM
- Drill chuck: 1/16″–5/8″
- Drilling capacity: 1/2″ mild steel
- Maximum distance from spindle to table: 12-3/4″
- Table size: 8-5/8″ x 9″
- Table swivel: 360° around center and column
- Table tilt: 90° L/R
- Head tilt: 45° left, 90° right
- Head swivel: 360°
- Column diameter: 2.36″
- Footprint: 13-1/2″ x 8-1/2″
- Overall size: 11-1/2″ W x 33-1/2″ D x 31-1/2″ H
- Approximate shipping weight: 97 lbs.
- Key Features and Benefits
- Rack-and-pinion elevation control for precise adjustments
- Radial design supports angle drilling and enhances versatility
- Threaded depth stop for repeatable drilling
- Precision-ground cast-iron table for stability
- Cushioned grip quill handles for comfortable operation
- ETL-certified and built in an ISO 9001 factory
