Description

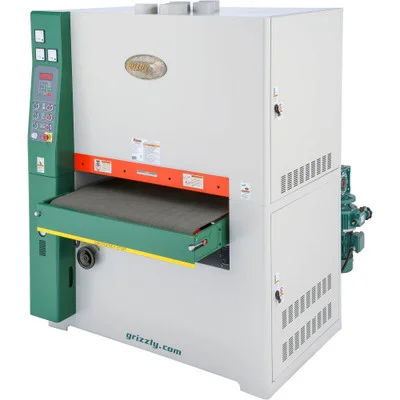

Grizzly Industrial 37″ 15 HP Wide-Belt Sander with Industrial Roller (G0866) is built to handle the demands of high-production woodworking shops. This industrial-grade machine features oversized sanding drums for increased belt grip and improved workpiece contact. Its powerful dual 15 HP sanding motors ensure versatility for a wide range of applications, from softwoods to hardwoods.
With a motorized table elevation system and a digital height display accurate to 0.005″, the sander delivers precise, repeatable results. The variable-speed conveyor feed motor adjusts between 7 and 68 FPM.
- Specifications and Dimensions
- Sanding belt motors: Dual 15 HP, 220V/440V* (prewired 240V), 3-phase, 36.7/18.4A
- Feed belt motor: 2 HP, 6.4A/3.2A
- Table elevation motor: 1/4 HP, 1.2A/0.6A
- Sanding belt size: 37″ x 75″
- Maximum board dimensions: 36-1/2″ W x 6″ H
- Minimum board thickness: 3/16″
- Minimum board length: 12″
- Conveyor speeds: Variable, 7–68 FPM
- Front sanding belt speed: 3600 FPM
- Rear sanding belt speed: 2800 FPM
- Air requirement: 57–70 PSI, 7 CFM
- Infeed drums: Spiral-grooved rubber, 8.7″ and 5″ diameter
- Outfeed drum: Steel, 5″ diameter
- Overall dimensions: 59″ W x 65″ D x 75″ H
- Approximate shipping weight: 3968 lbs.
- Key Features and Benefits
- Digital height readout for precise adjustments
- Independent motor controls for versatile operation
- Emergency stop disc brake for safety
- Micro-adjustable graphite/felt platen for precision sanding
- Pneumatic belt tracking and tensioning
- Amp/load meter to monitor performance
- Six 5″ dust ports for effective dust management
- Built-in air filter and lubricator for improved durability
