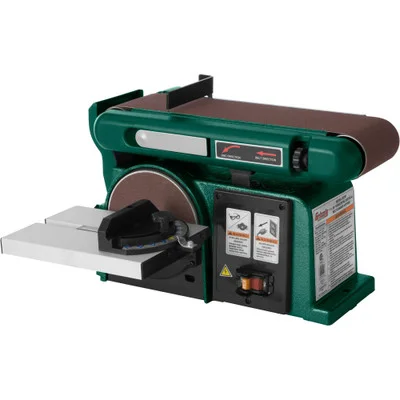

Grizzly Industrial 4″ x 36″ Horizontal/Vertical Belt Sander with 6″ Disc (G0787)

Description

Grizzly Industrial 4″ x 36″ Horizontal/Vertical Belt Sander with 6″ Disc (G0787) is a versatile and compact machine designed to handle smaller sanding projects with precision. Its 4″ x 36″ sanding belt can tilt from 0° to 90°, allowing both horizontal and vertical sanding positions.

Built for ease of use and durability, this sander features a quick-release belt tension lever, adjustable miter gauge, and a built-in tracking control knob for seamless operation. The compact design and cast-iron base provide stability and make it an excellent choice for smaller workshops.

• Specifications and Dimensions
  • Motor: 1/2 HP, 120V, single-phase, 4.3A
  • Sanding belt size: 4″ x 36″
  • Sanding belt speed: 1900 FPM
  • Belt platen size: 4-7/8″ x 12″
  • Belt platen tilt: 0–90°
  • Disc diameter: 6″
  • Disc backing type: PSA
  • Disc speed: 3600 RPM
  • Table size: 6-1/4″ x 9″
  • Table tilt: 0–45°
  • Number of dust ports: 1
  • Dust port size: 2-1/2″
  • Footprint: 6″ x 15″
  • Overall dimensions: 17-1/2″ W x 14-1/2″ D x 24″ H
  • Approximate shipping weight: 41 lbs.



• Key Features and Benefits
  • Tilting belt for horizontal and vertical sanding versatility
  • Compact design ideal for smaller workshops
  • Quick-release belt tension for fast belt changes
  • Adjustable miter gauge for angled sanding
