Description

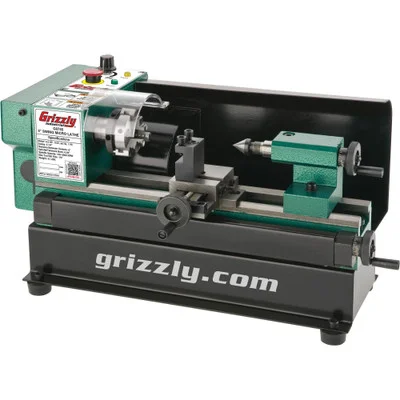

Grizzly Industrial 4″ x 6″ Variable-Speed Benchtop Metal Lathe (G0745) is the perfect choice for jewelers, model makers, and hobbyists. Designed with compact spaces in mind, this lathe features a 4-1/4″ swing over bed, a 6″ distance between centers, and a variable-speed spindle ranging from 100 to 3800 RPM.
Whether you’re crafting intricate jewelry or working on small metal components, this lathe provides precision and control. Equipped with a 2″ 3-jaw chuck, tailstock dead center, and an emergency stop button, this lathe is ideal for beginners and experienced users alike.
- Specifications and Dimensions
- Motor: 1/5 HP, 110V, single-phase, 1.8A
- Swing over bed: 4-1/4″
- Swing over cross slide: 2″
- Distance between centers: 6″
- Bed width: 2-5/16″
- Spindle speed: Variable, 100–3800 RPM
- Spindle bore: 0.39″ (10mm)
- Spindle threads: M14-1.0
- Tailstock barrel diameter: 0.39″ (10mm)
- Tailstock barrel travel: 7/8″
- Cross slide travel: 1-1/2″
- Carriage travel: 7-1/8″
- Footprint: 5-1/2″ x 14″
- Overall dimensions: 16-1/4″ W x 11-1/2″ D x 11-1/2″ H
- Approximate shipping weight: 36 lbs.
- Key Features and Benefits
- Variable-speed spindle for precision control
- Compact and portable design fits small workspaces
- Emergency stop button for added safety
- Includes essential tools and accessories for immediate use
- 1/4″ T-slot on the cross slide for clamping additional tooling
- Durable construction with non-marring rubber feet
- Includes
- 2″ 3-Jaw chuck
- Tailstock dead center
- Cross-slide mounted tool holder
- Open-end wrench (5.5 x 7mm)
- Phillips screwdriver (#2)
- Hex wrenches (3mm, 4mm, 5mm)
