Description

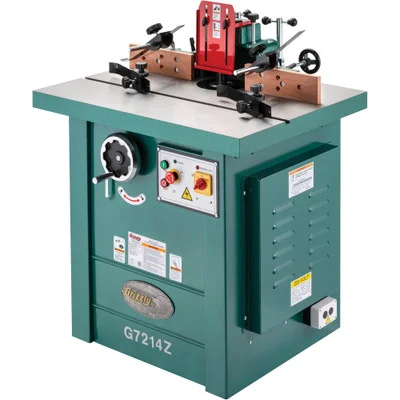

Grizzly Industrial 7-1/2 HP 3-Phase Spindle Shaper (G7214Z) is designed to deliver unparalleled precision and efficiency in professional woodworking. Powered by a robust 7-1/2 HP motor, this spindle shaper accommodates a wide range of shaping applications.
With spindle diameters of 3/4″, 1″, and 1-1/4″, the Grizzly Industrial 7-1/2 HP 3-Phase Spindle Shaper supports maximum cutter diameters of 5-7/8″ and cutter heights of up to 5-1/8″. Additional features include a cast-iron miter gauge, a spindle height scale in both inches and millimeters.
- Specifications and Dimensions
- Motor: 7-1/2 HP, 220V/440V (prewired 220V), 3-phase, 20A/10A
- Minimum circuit size: 30A @ 220V, 15A @ 440V
- Maximum cutter height: 5-1/8″
- Maximum cutter diameter: 5-7/8″
- Spindle diameters: 3/4″, 1″, 1-1/4″
- Spindle lengths: 6″–7″
- Spindle speeds: 3600, 5100, 8000, 10,000 RPM
- Table size: 28″ x 35-1/2″
- Floor-to-table height: 34-3/4″
- Overall dimensions: 34-3/4″ W x 35-1/2″ D x 43″ H
- Approximate shipping weight: 613 lbs.
- Key Features and Benefits
- Adjustable spindle diameters and lengths for versatile operation
- Precision-ground cast-iron table provides stability and accuracy
- Includes three spindles with spacers and nuts
- Four spring-steel hold-down assemblies secure your workpiece
- Spindle height scale marked in inches and millimeters
