Description

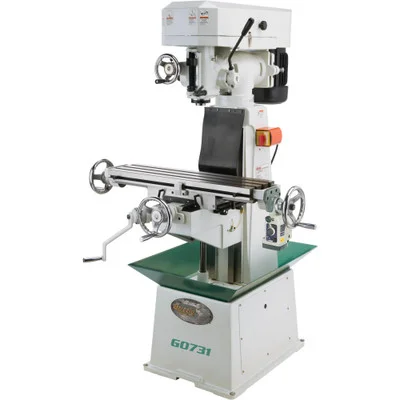

Grizzly Industrial 8″ x 30″ 1-1/2 HP Vertical Mill with Power Feed (G0731) is engineered to deliver precision and versatility in one compact design. Its powerful 1-1/2 HP motor drives a range of nine spindle speeds from 300 to 2840 RPM, making it suitable for tackling solid materials. The dovetail sliding ways ensure accuracy, while the one-shot oiler system simplifies daily lubrication for smooth operation.
This milling machine features a tilting head (45° left/right), a turret-style column that rotates 360°, and a cabinet designed to accommodate aftermarket coolant systems for enhanced usability.
- Specifications and Dimensions
- Motor: 1-1/2 HP, 110V/220V (prewired for 110V), single-phase, 18A/9A
- Spindle taper: R-8
- Spindle travel: 3-1/2″
- Spindle speeds: 9, 300–2840 RPM
- Max. distance spindle to table: 20″
- Max. distance spindle to column: 7″
- T-Slots: 3 @ 2-3/16″ on center, 1/2″ wide
- Table size: 8″ x 30″
- Table travel (X-axis): 18″
- Table travel (Y-axis): 7-3/4″
- Vertical table travel (Z-axis): 17-3/4″
- Head tilt: 45° left/right
- Drilling capacity: 3/4″ mild steel
- Overall dimensions: 40-1/2″ W x 42-3/4″ D x 67″ H
- Approximate shipping weight: 954 lbs.
- Key Features and Benefits
- Power feed with limit switch for controlled X-axis table movement
- Head tilts 45° left/right and turret rotates 360° for adaptable operations
- Dovetail sliding ways provide precision and durability
- One-shot lubrication system ensures consistent performance
- Precision-ground table with coarse and fine downfeed controls
- Forward/reverse switch enhances operational flexibility
- Prewired for 110V and convertible to 220V for versatile power needs
- Catch tray accommodates aftermarket coolant systems
